Plate dimensions of wheels and castors

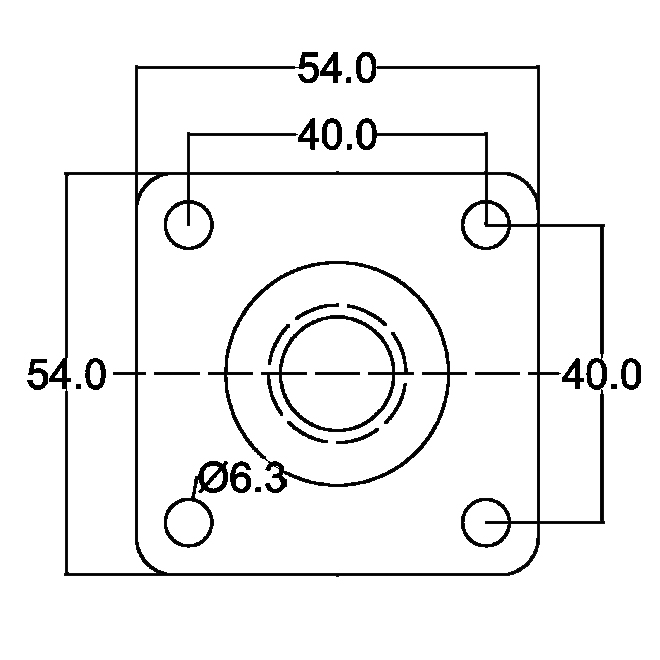

Series A300, A310, A320 ...
Wheel-Ø 50 mm

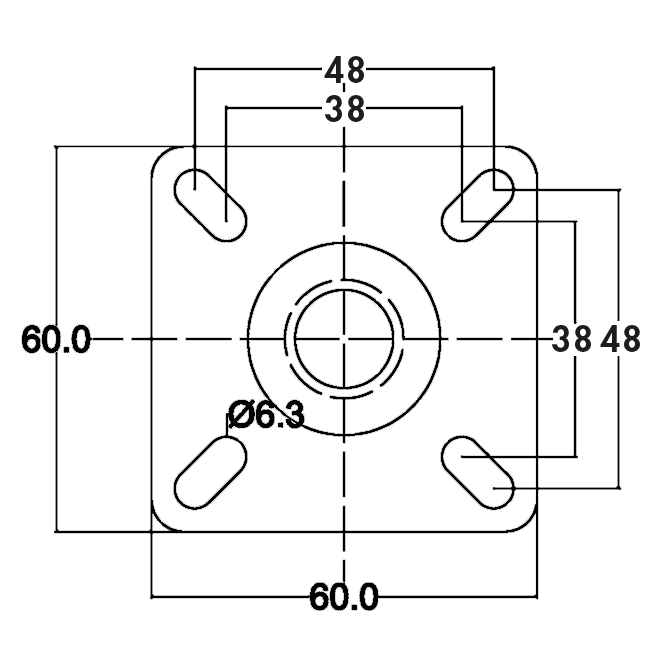

Series A300, A310, A320 ...
Wheel-Ø 75, 100 mm
Series B100, B120 …
Wheel-Ø 50 mm

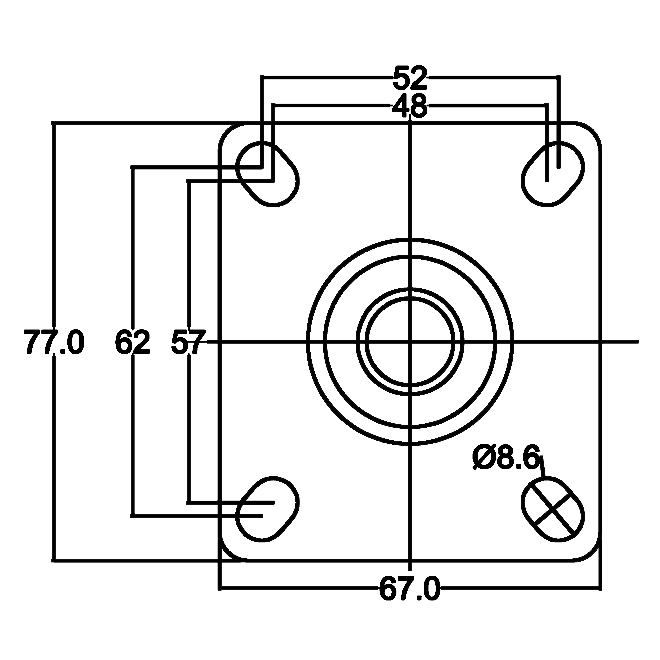

Series B100, B120 …
Wheel-Ø 75 mm

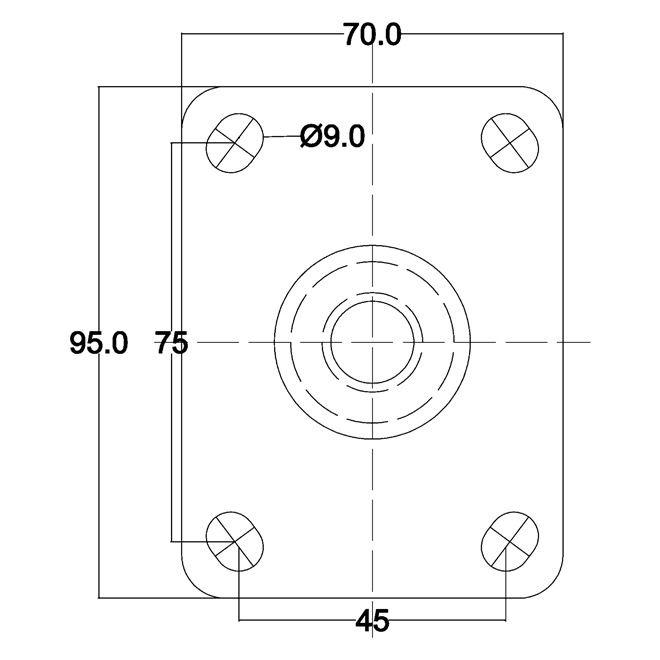

Series C100, C110, C120 …
Wheel-Ø 100, 125 mm

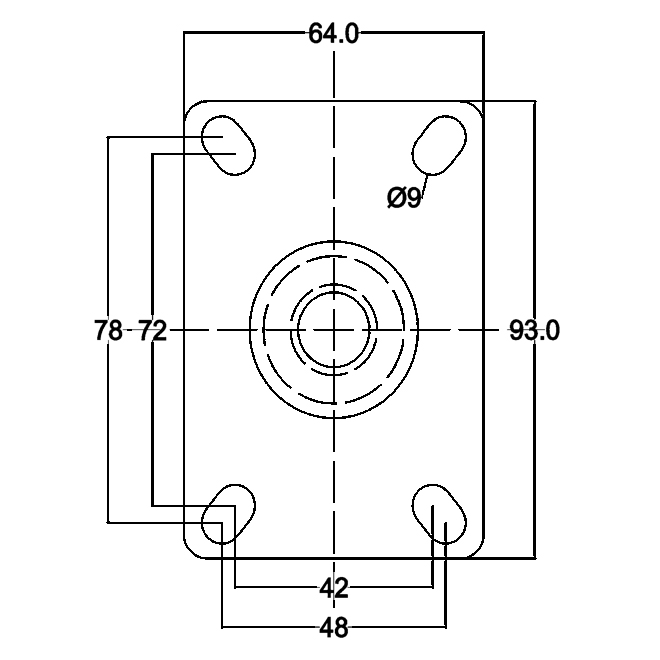

Series C100, C110, C120 …
Wheel-Ø 80, 150 mm

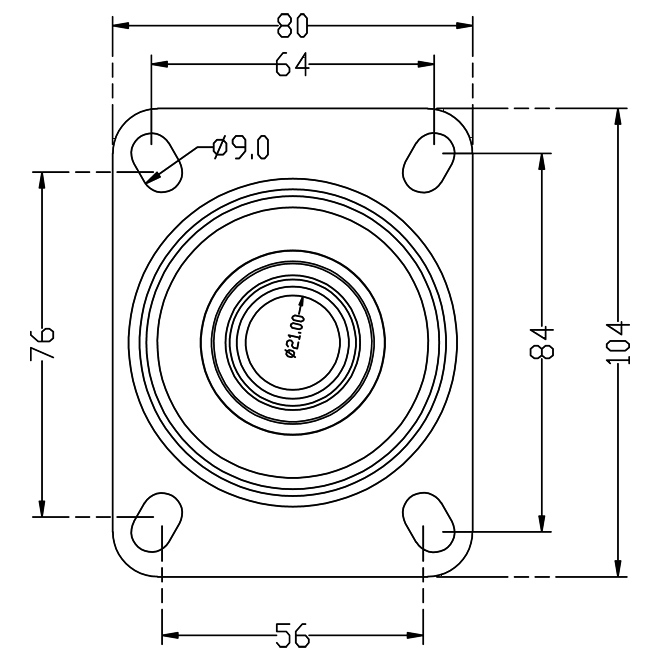

Series L400, L420 …
Wheel-Ø 80, 100, 125 mm
Series L410 …
Wheel-Ø 80, 100, 125 mm
Series L400, L420 …
Wheel-Ø 125, 160, 180, 200 mm

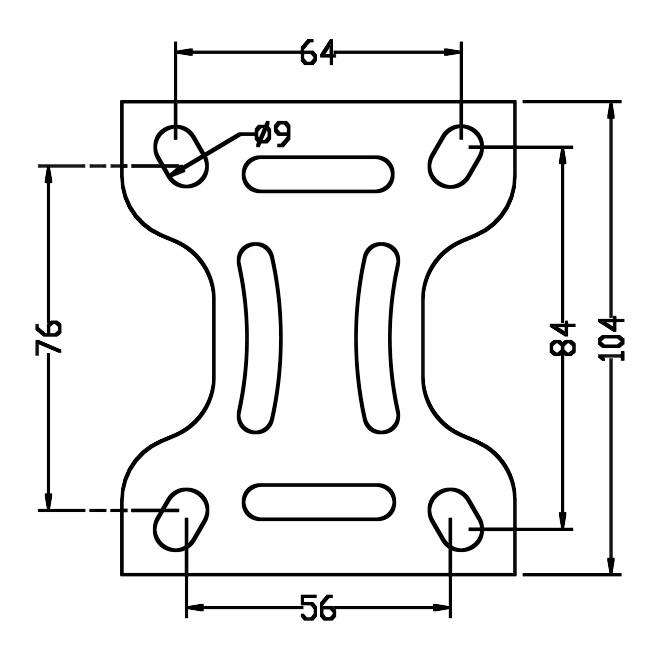

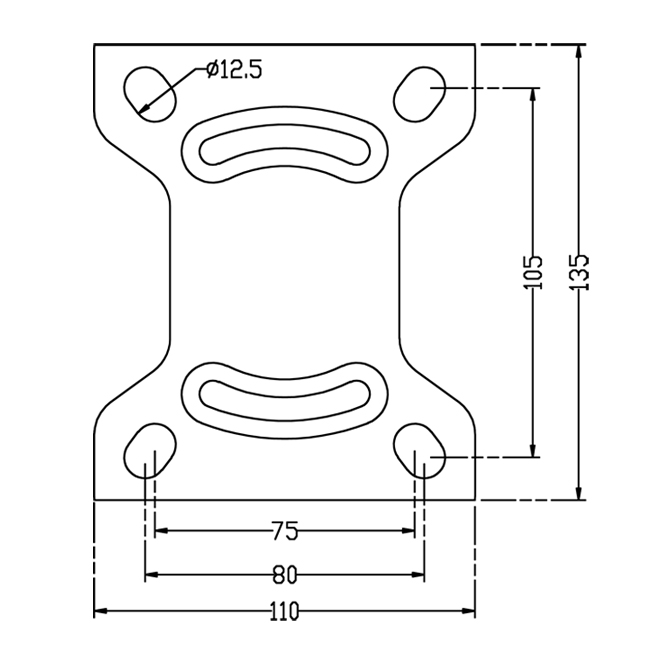

Series L410 …
Wheel-Ø 125, 160, 180, 200 mm

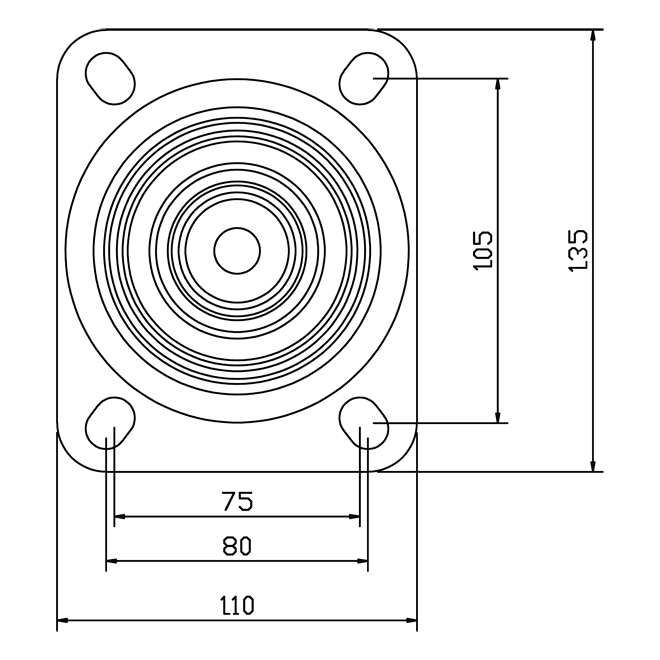

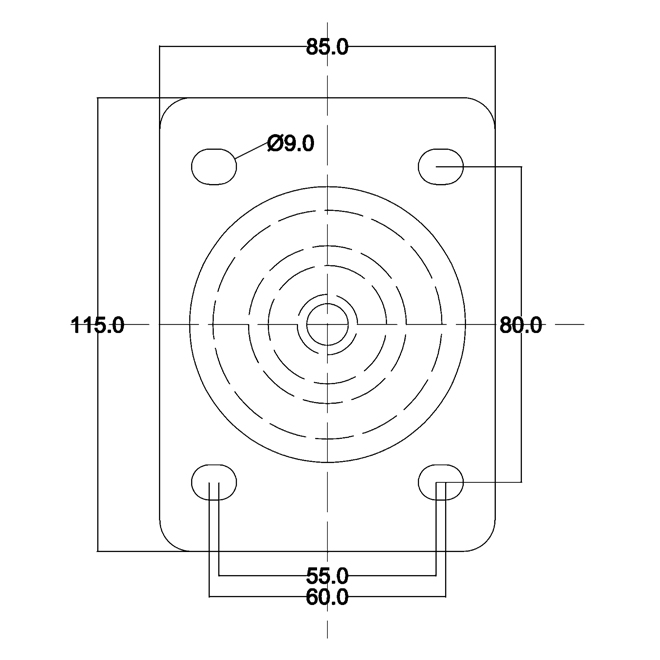

Series LS400, LS410, LS420 …
Wheel-Ø 125 mm
Series LB500
Wheel-Ø 100, 125 mm
Series LS500
Wheel-Ø 100 mm

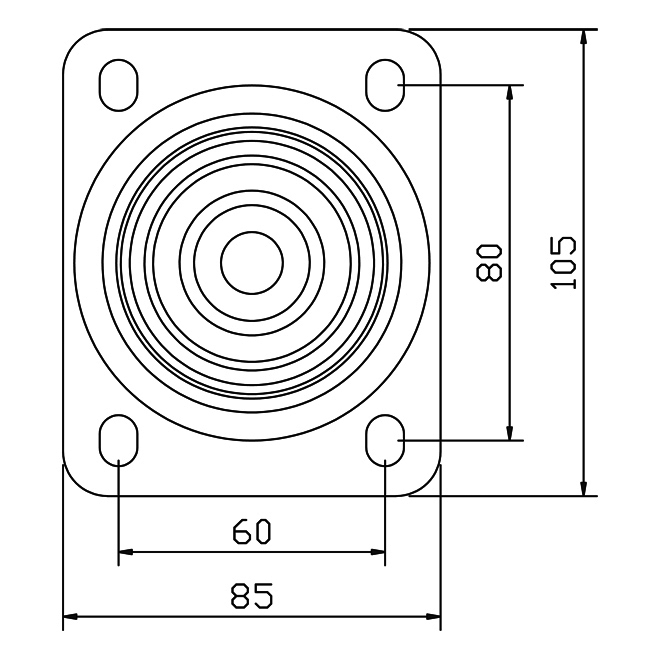

Series L500
Wheel-Ø 100 mm

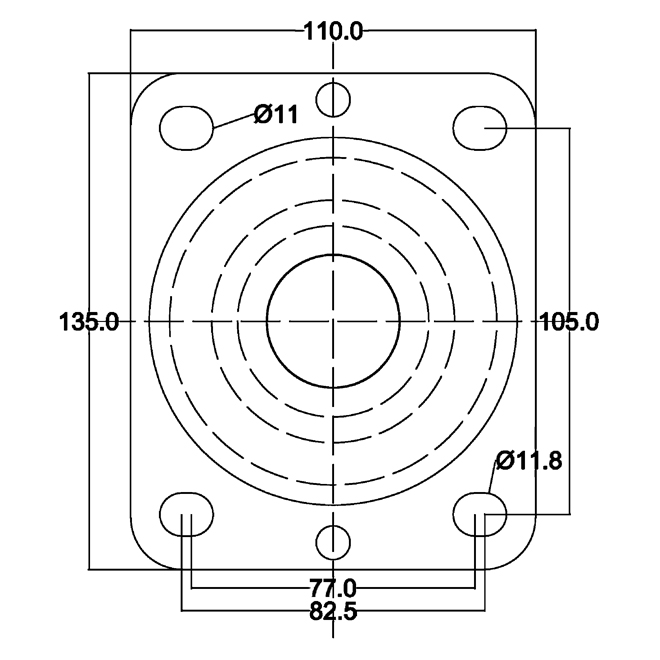

Series N100, N120 …
Wheel-Ø 100, 125, 160, 200, 250 mm

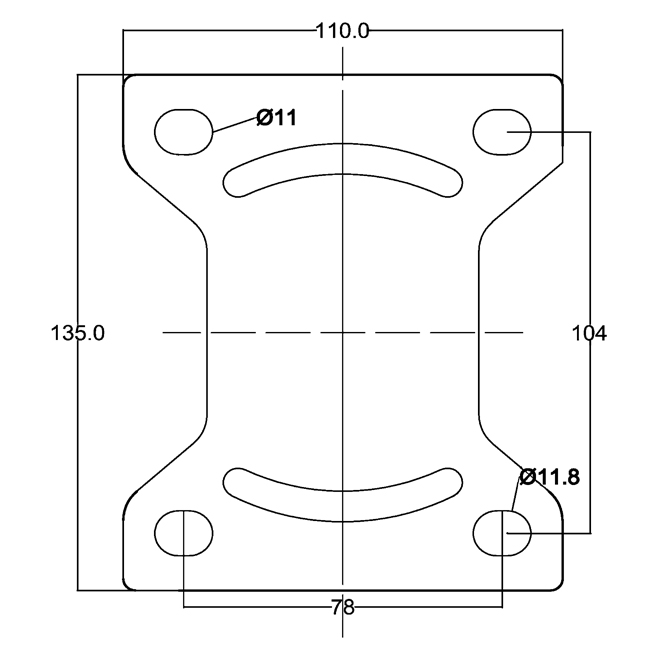

Series N110 …
Wheel-Ø 100, 125, 160, 200, 250 mm

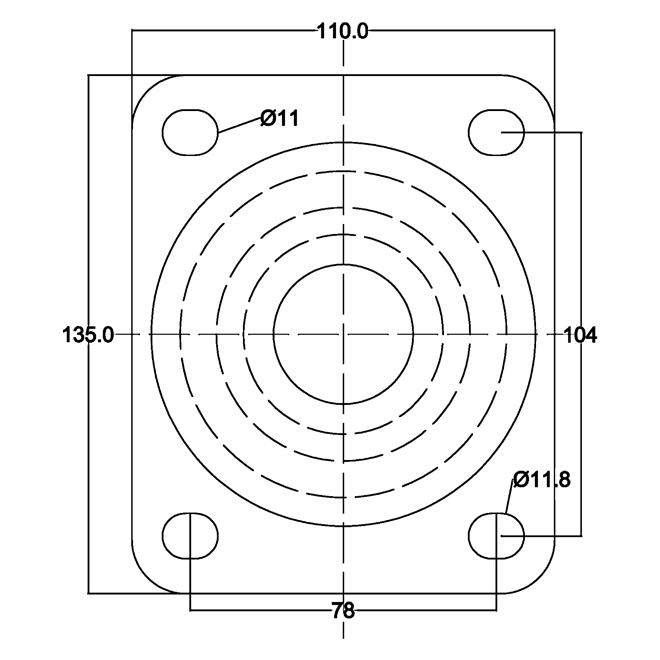

Series L600, L620 …
Wheel-Ø 125, 160, 200, 250 mm

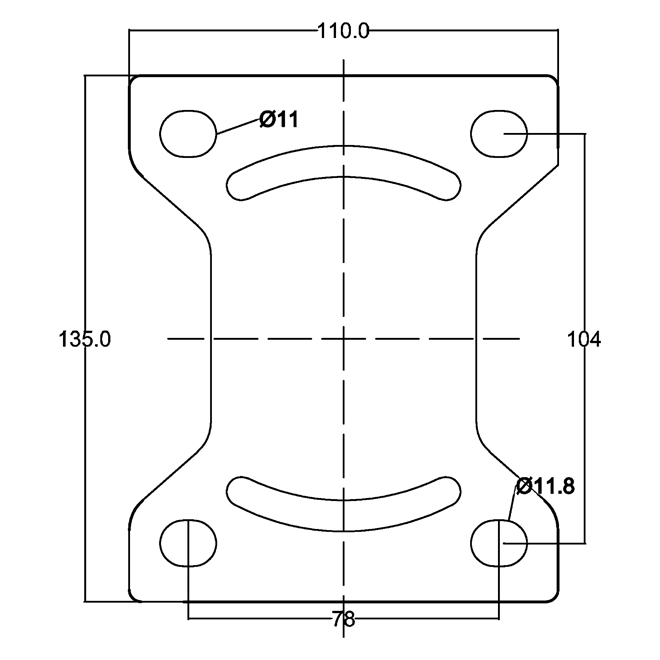

Series L610 …
Wheel-Ø 125, 160, 200, 250 mm

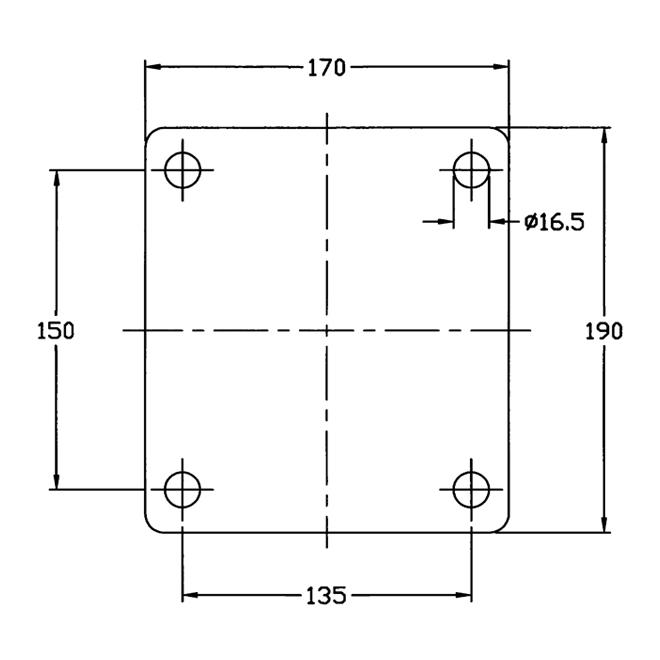

Series R100, R110 …
Wheel-Ø 85 mm

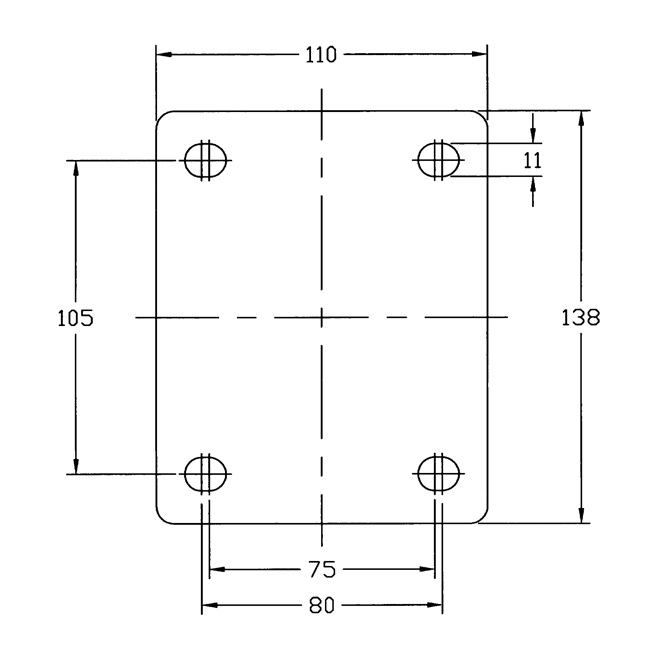

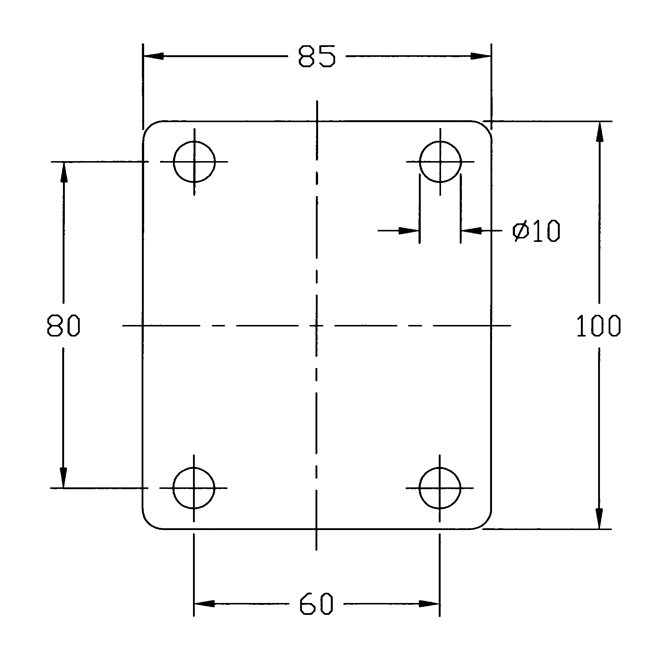

Series R100, R110, R120 …
Wheel-Ø 80, 100 mm
Series R100, R110, R120 …
Wheel-Ø 100, 125, 160, 200, 250 mm

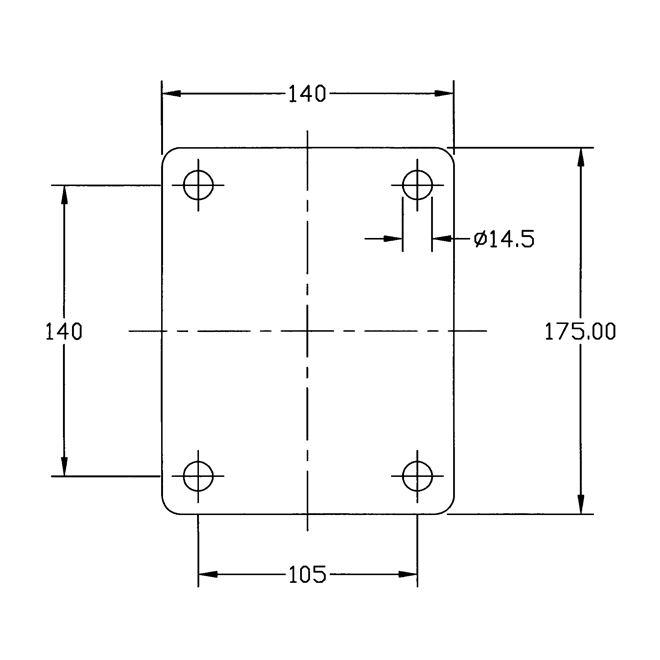

Series R100, R110, R120 …
Wheel-Ø 150, 200, 250, 300 mm

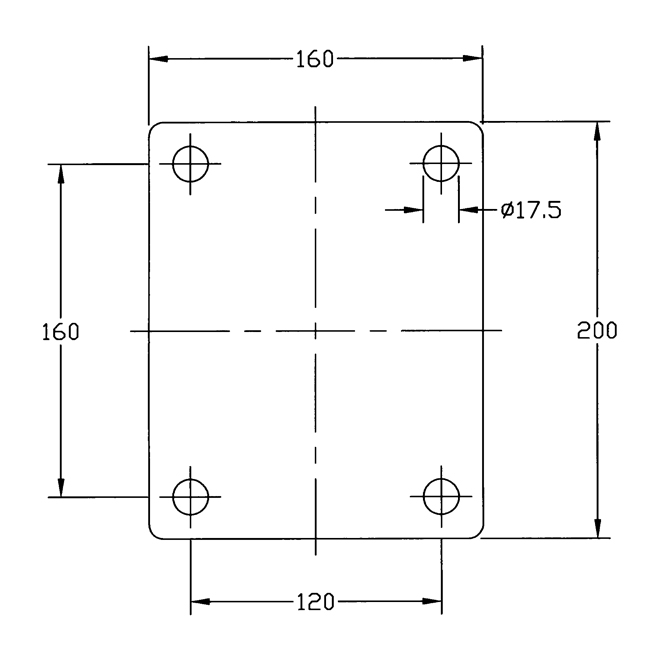

Series R100, R110, R120 …
Wheel-Ø 150, 200, 250, 300, 400 mm
Series S100, S120 …
Wheel-Ø 150, 200, 250, 300, 400 mm

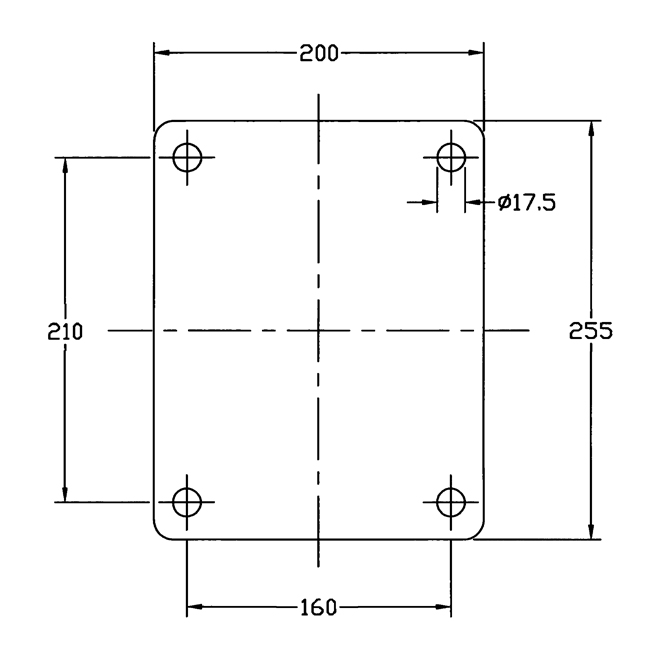

Series R100, R110, R120 …
Wheel-Ø 200, 250, 300, 400 mm

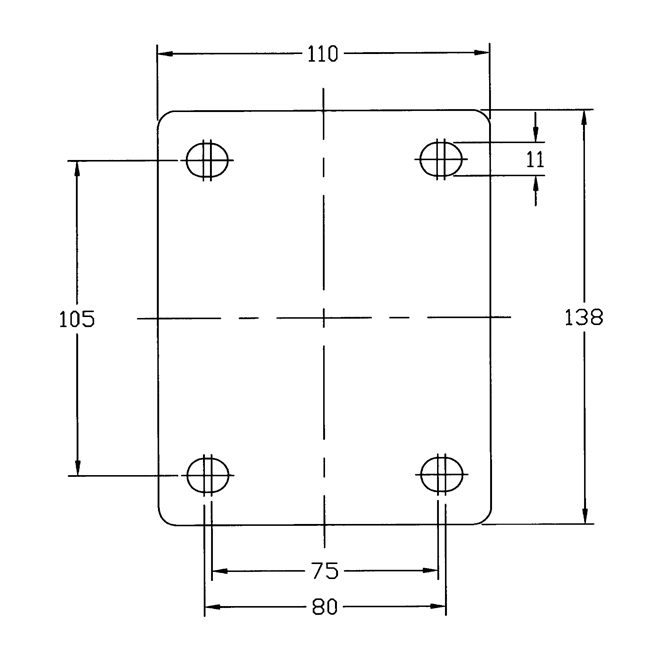

Series S100, S120 …
Wheel-Ø 100, 125, 150 mm

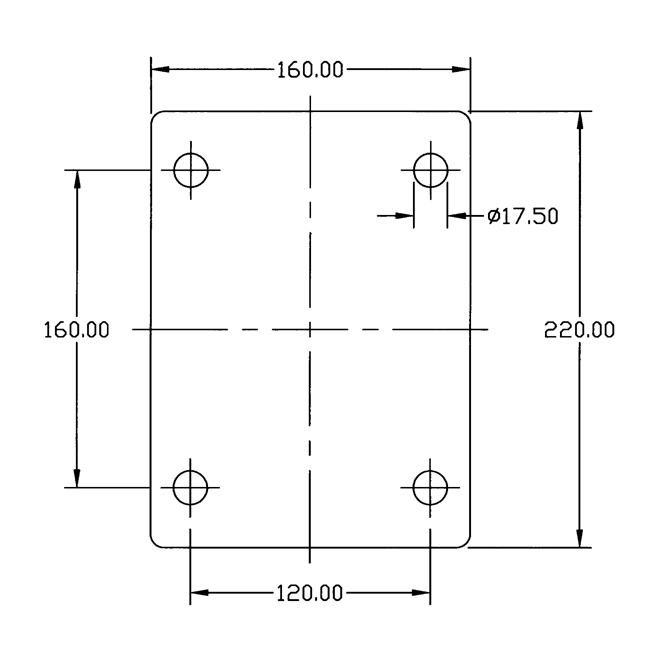

Series S110 …
Wheel-Ø 100, 125, 150 mm

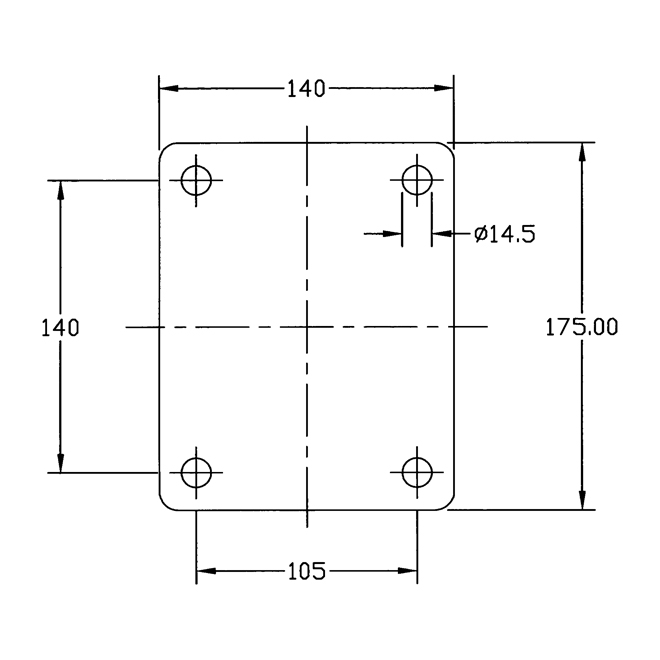

Series S100, S110, S120 …
Wheel-Ø 150, 200, 250, 300 mm
Series S110 …
Wheel-Ø 150, 200, 250, 300, 400 mm

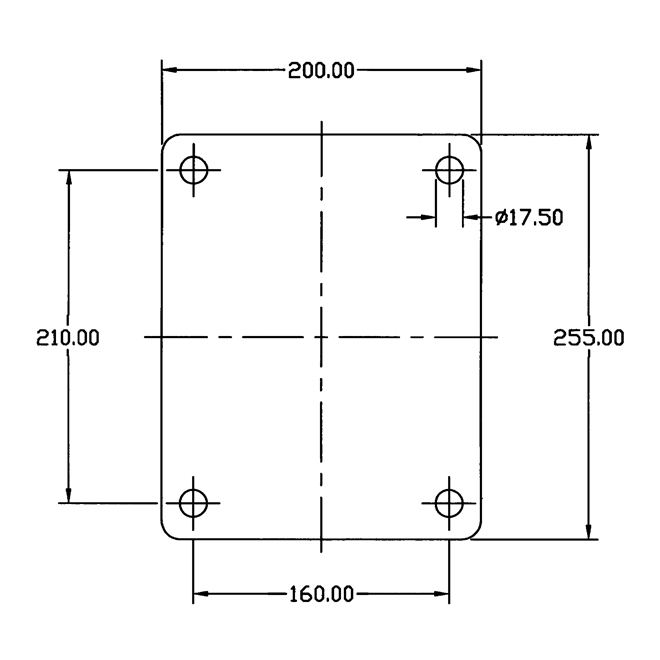

Series S100, S110, S120 …
Wheel-Ø 150, 200, 250, 300, 400 mm
