Structure of the fork heads

Series A300 …
Wheel-Ø 50, 75, 100 mm
Plate 54 x 54 mm, 60 x 60 mm
Load capacity 50 – 70 kg

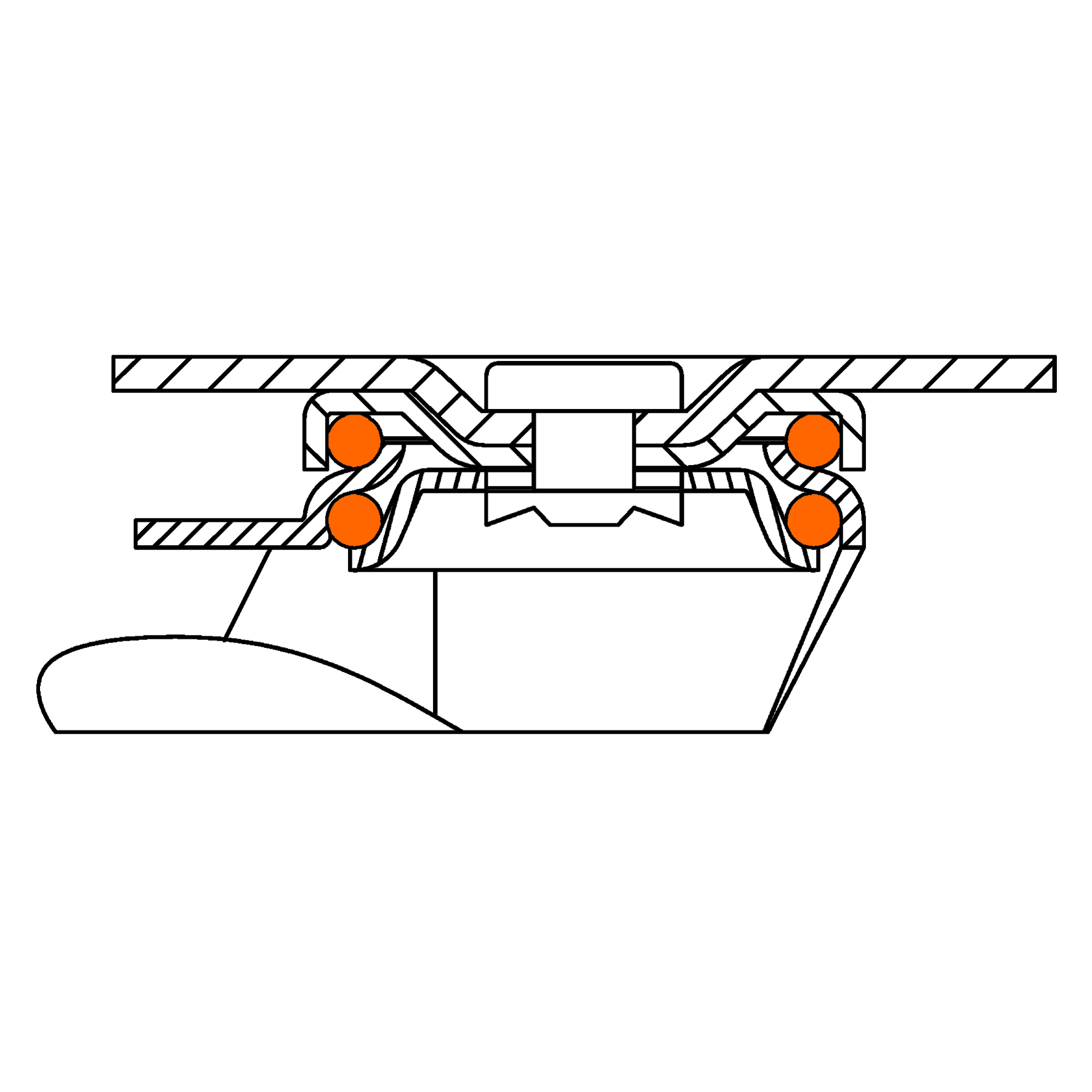

Series B100 …
Wheel -Ø 50, 75 mm
Plate 60 x 60 mm, 77 x 67 mm
Load capacity 60 – 100 kg

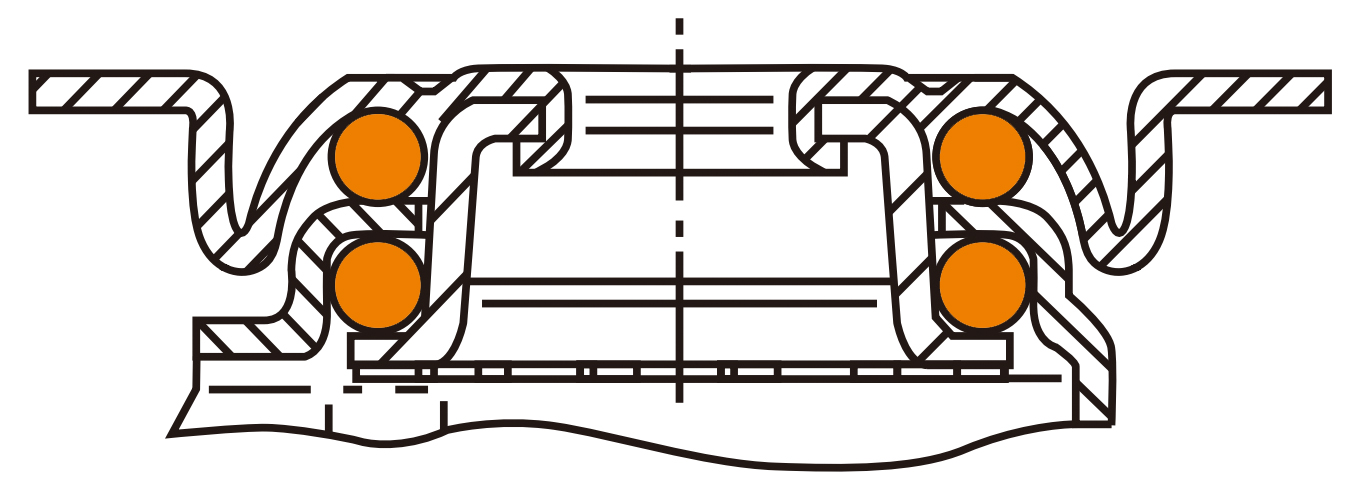

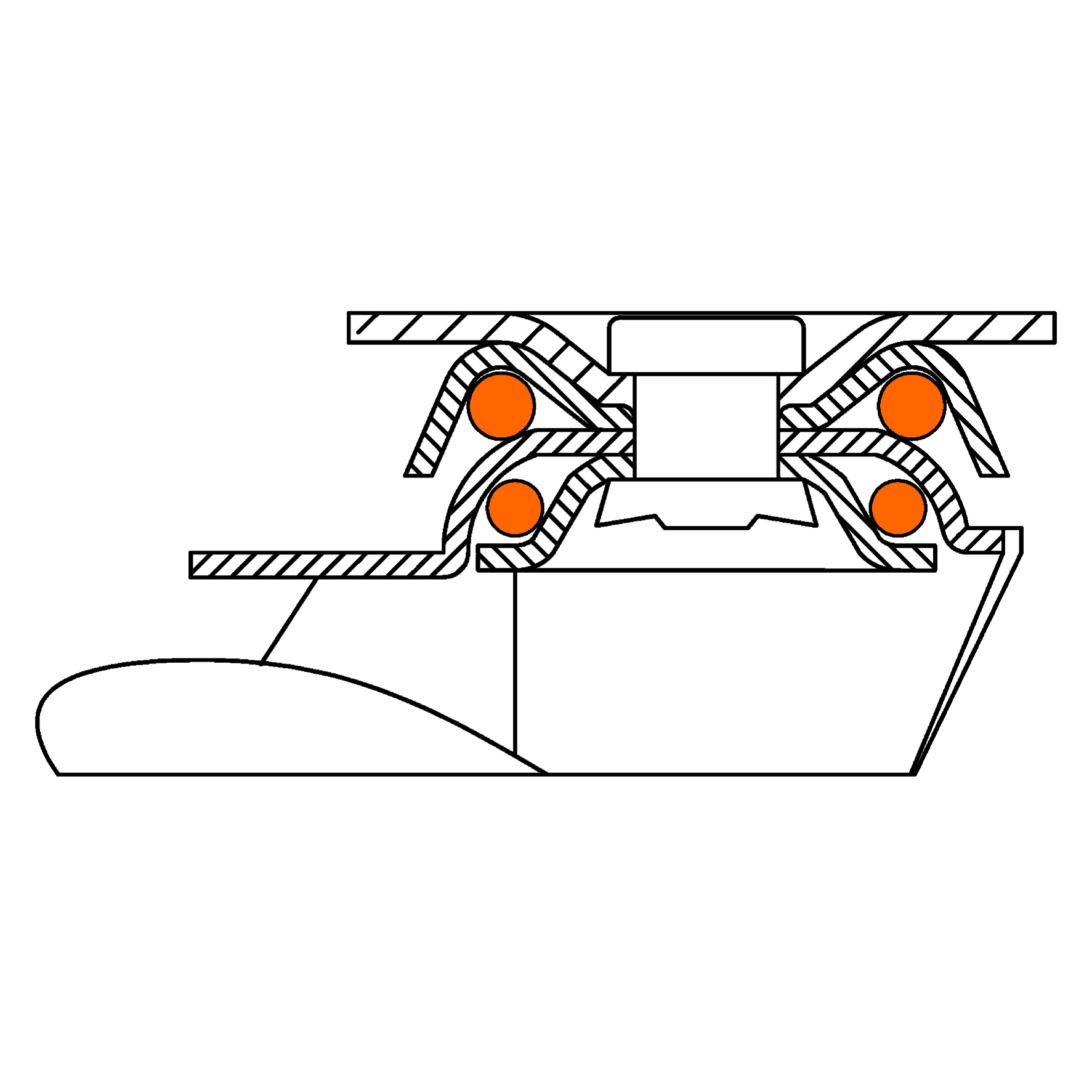

Series C100 …
Wheel -Ø 80, 100, 125, 150, 200 mm
Plate 77 x 67 mm, 94 x 64 mm, 95 x 70 mm
Load capacity 80 – 100 kg

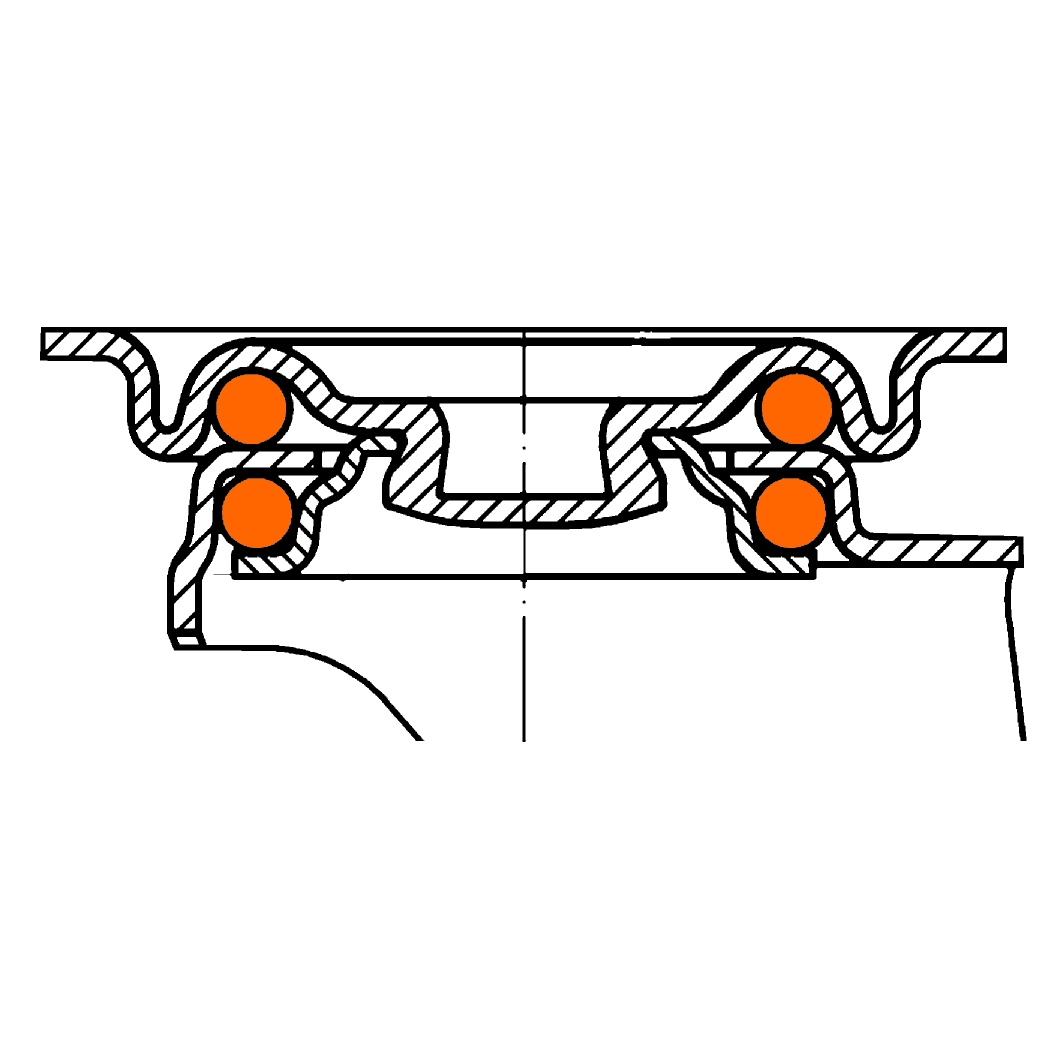

Series G100 …
Wheel -Ø 50, 75, 100, 125 mm
Plate 60 x 60 mm, 76 x 70 mm
Load capacity 40 – 100 kg

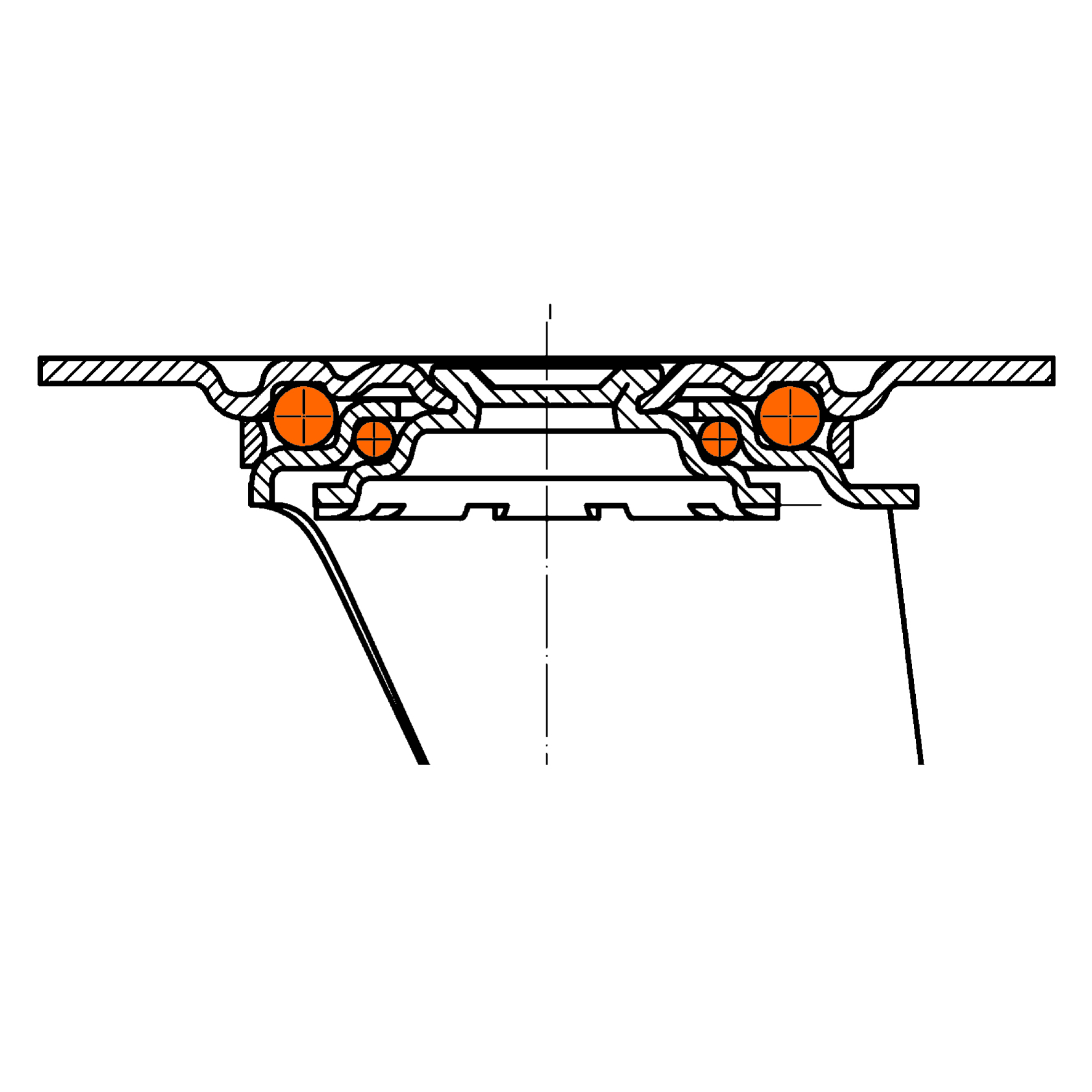

Series H100 …
Wheel -Ø 80, 100, 125, 150, 200 mm
Plate 95 x 80 mm, 129 x 106 mm
Load capacity 130 – 200 kg

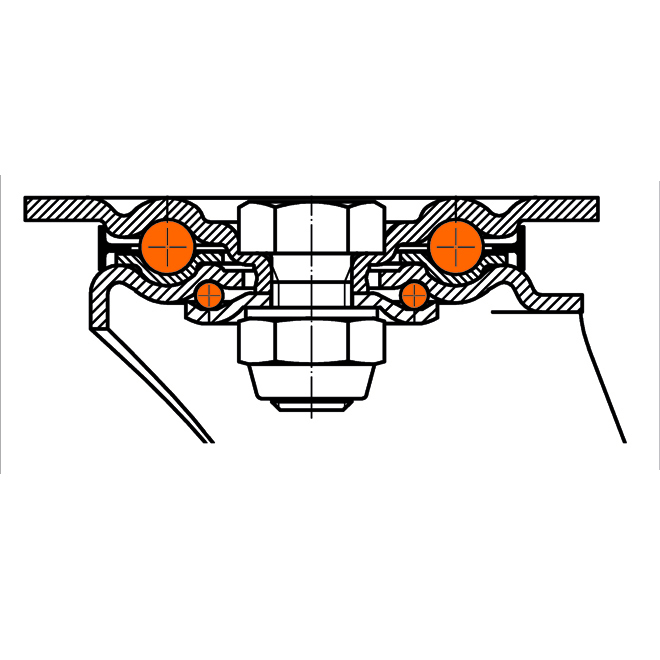

Series HS100 …
Wheel -Ø 100, 125, 150, 200 mm
Plate 100 x 84 mm, 132 x 110 mm
Load capacity 300 – 700 kg

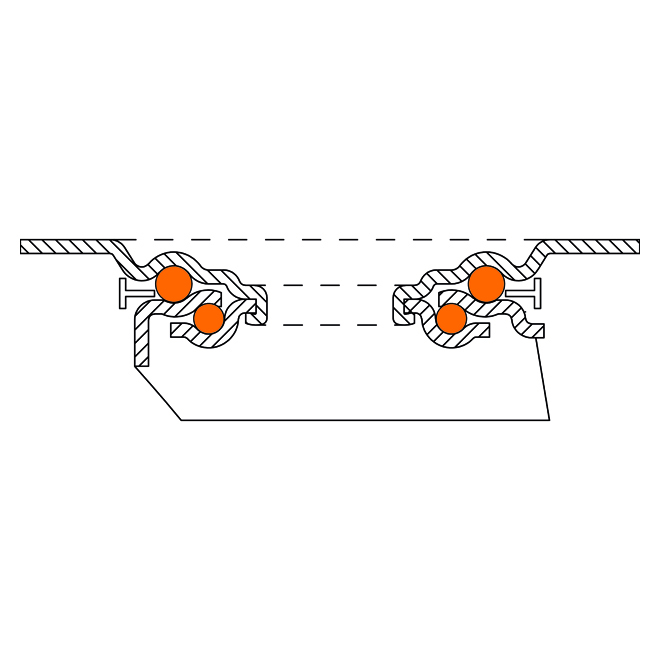

Series L400 …
Wheel -Ø 80, 100, 125, 140, 150, 160, 180, 200 mm
Plate 104 x 80 mm, 115 x 85 mm, 135 x 110 mm
Load capacity 100 – 400 kg

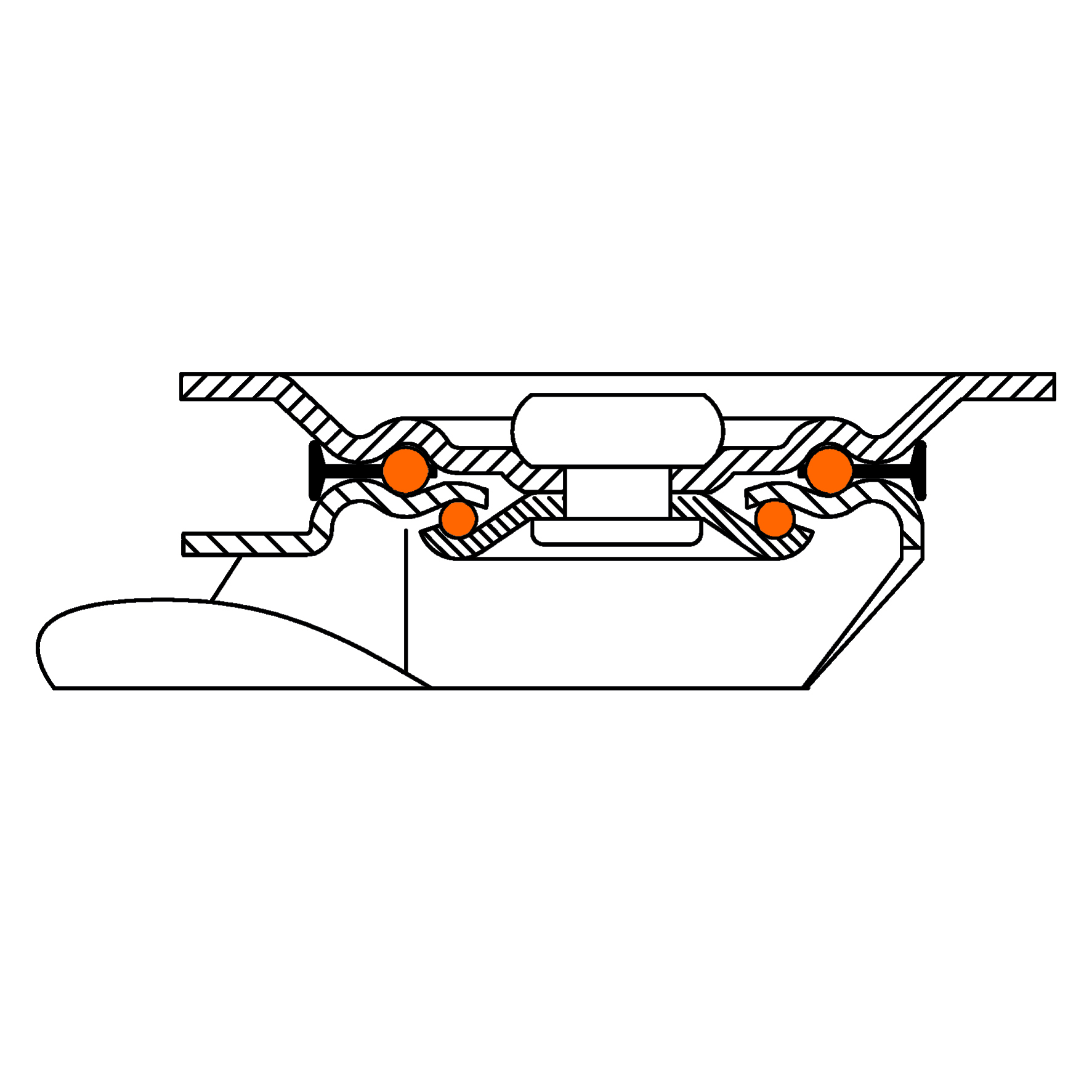

Series L400 …
Wheel -Ø 250, 280 mm
Plate 186 x 170 mm
Load capacity 300 – 350 kg

Series L500, LB500 …
Wheel -Ø 100, 125 mm
Plate 104 x 80 mm, 105 x 85 mm
Load capacity 140 – 350 kg

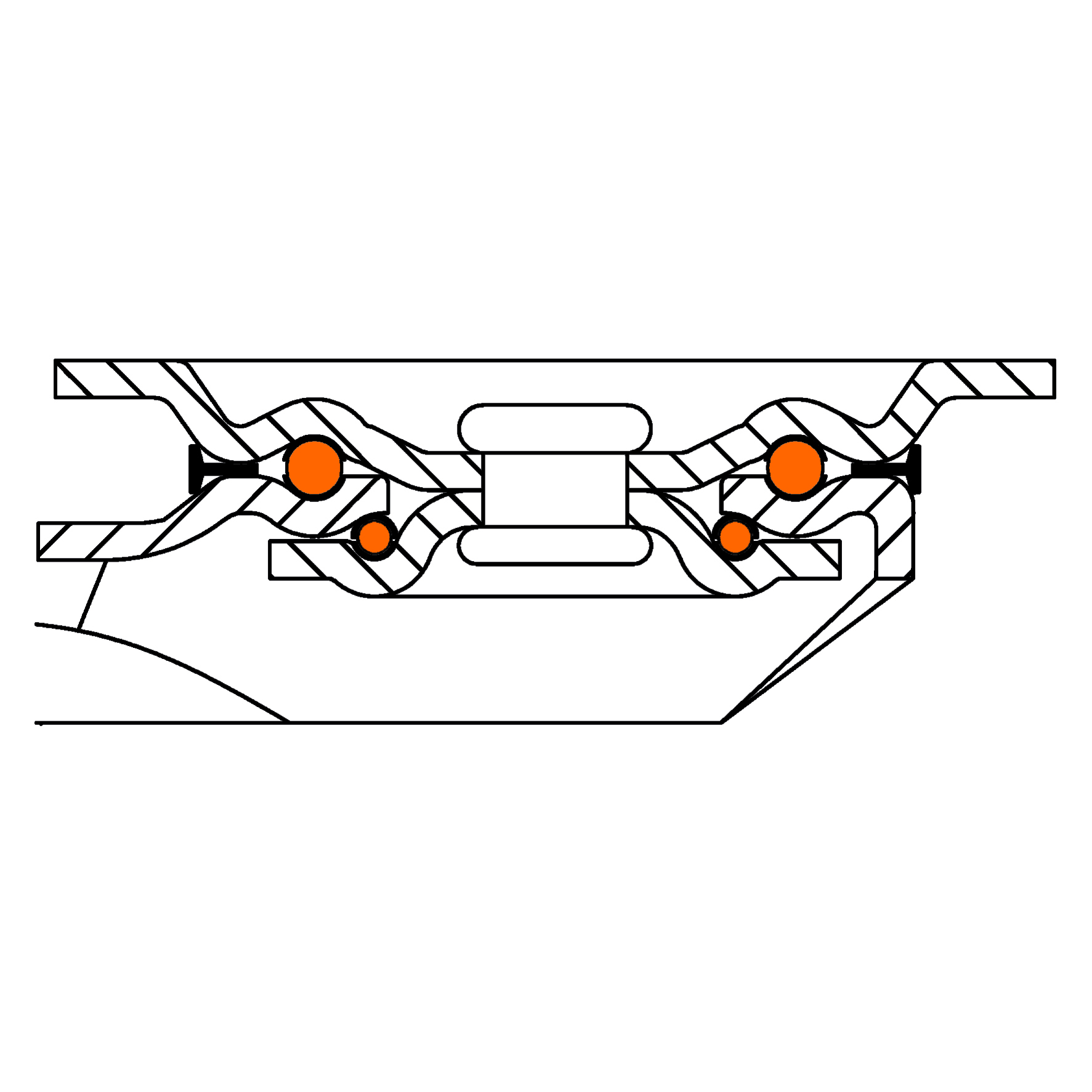

Series L600 …
Wheel -Ø 125, 150, 200, 250 mm
Plate 135 x 110 mm
Load capacity 700 – 1500 kg

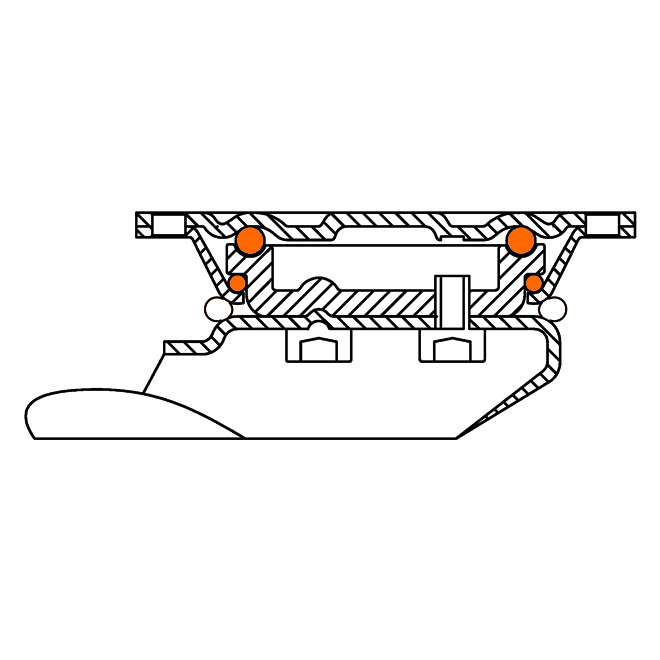

Series N100 …
Wheel -Ø 100, 125, 150, 160, 200, 250 mm
Plate 138 x 110 mm
Load capacity 500 – 600 kg
(Anti-splash fork head)

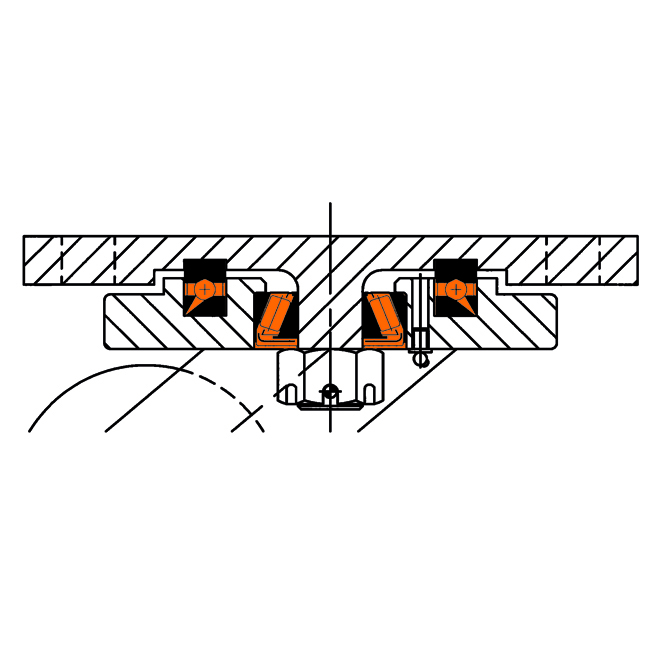

Series R100 …
Wheel -Ø 85 mm
Plate 190 x 175 mm
Load capacity 800 – 1200 kg

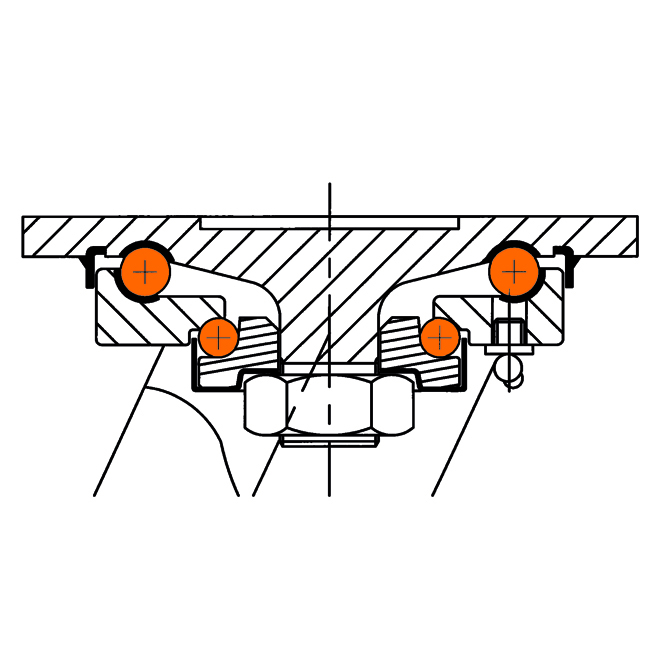

Series R100 …
Wheel -Ø 80, 100 mm
Plate 138 x 110 mm
Load capacity 150 – 1500 kg

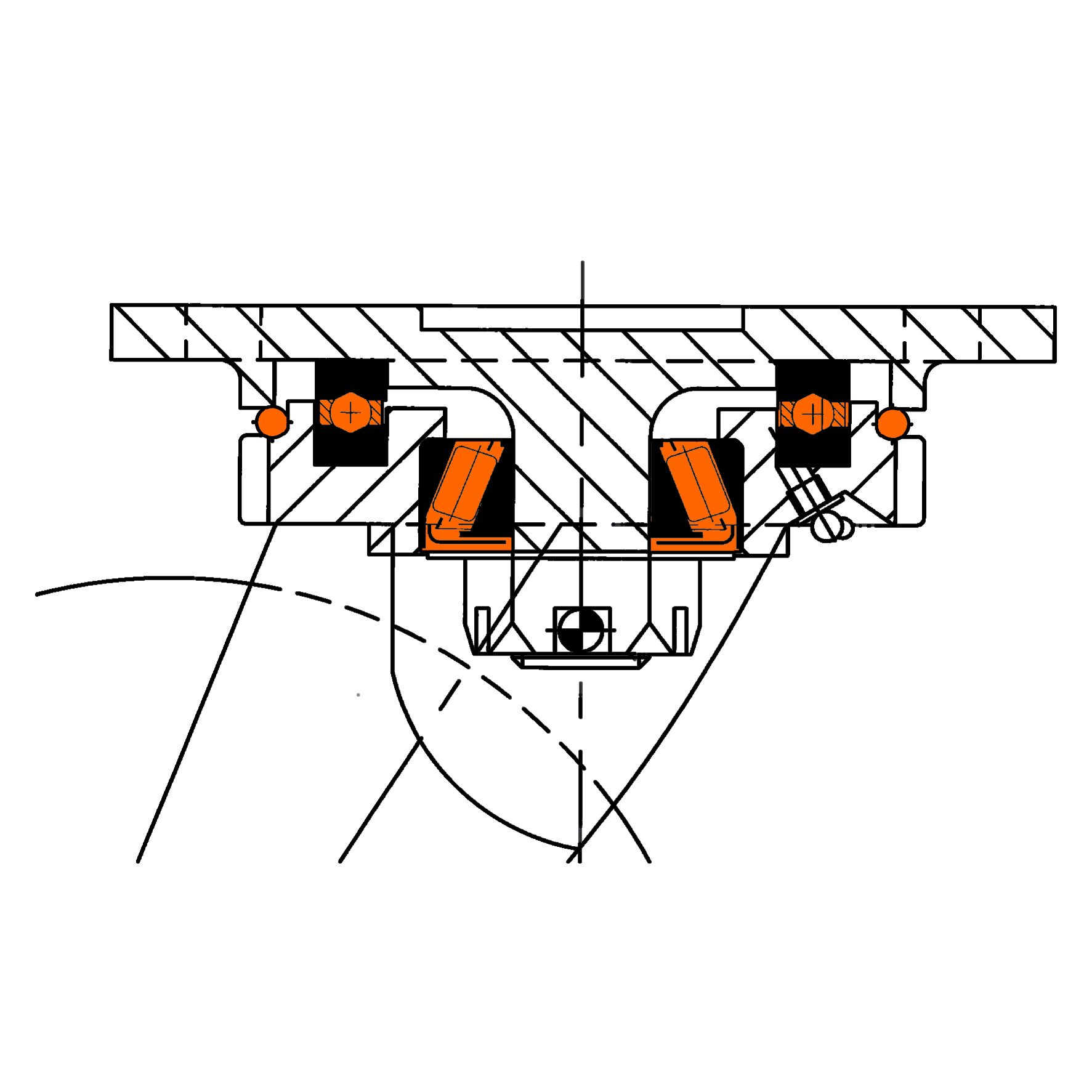

Series R100 …
Wheel -Ø 100, 125, 160, 200, 250 mm
Plate 138 x 110 mm
Load capacity 150 – 1500 kg

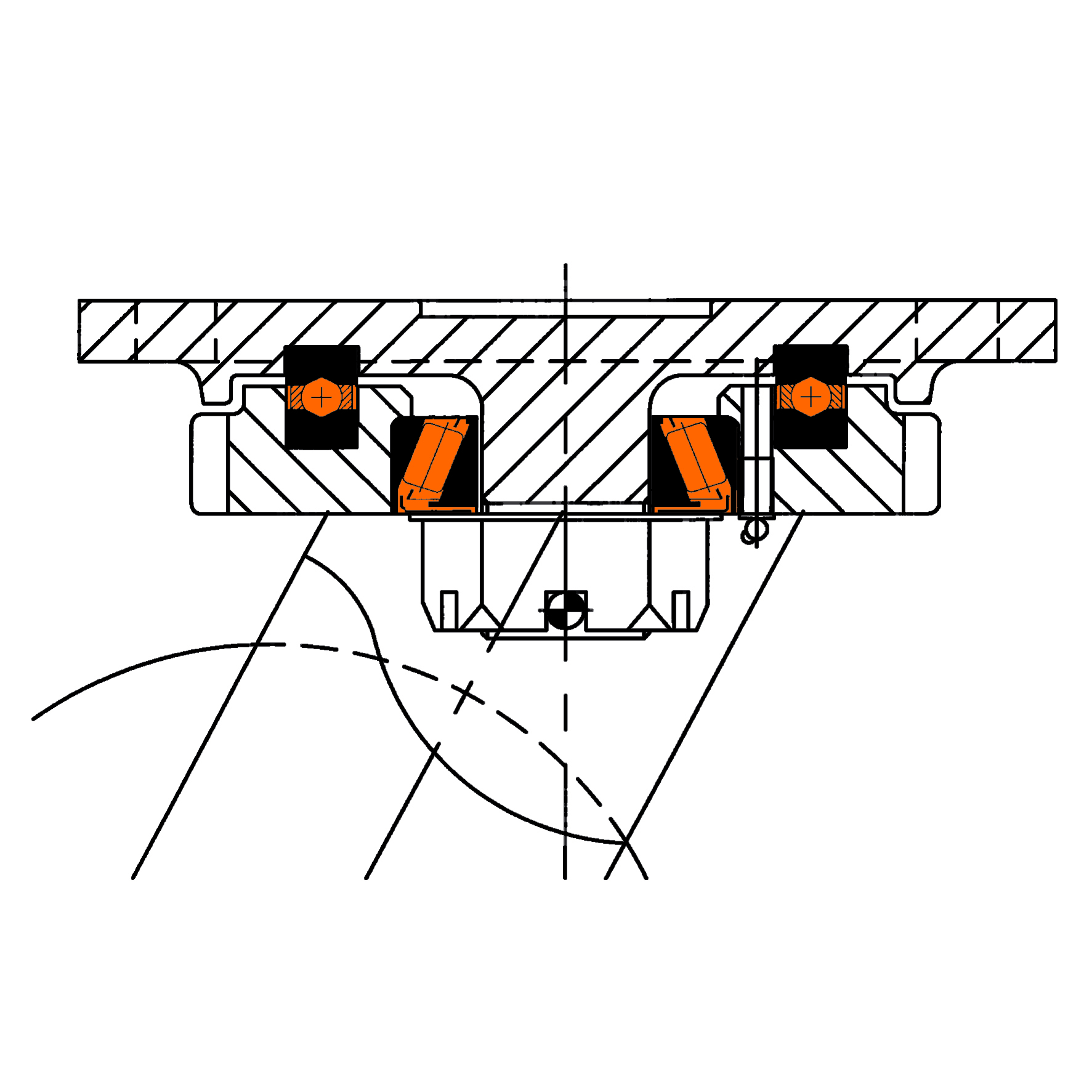

Series R100 …
Wheel -Ø 150, 200, 250, 300 mm
Plate 175 x 140 mm
Load capacity 350 – 2000 kg

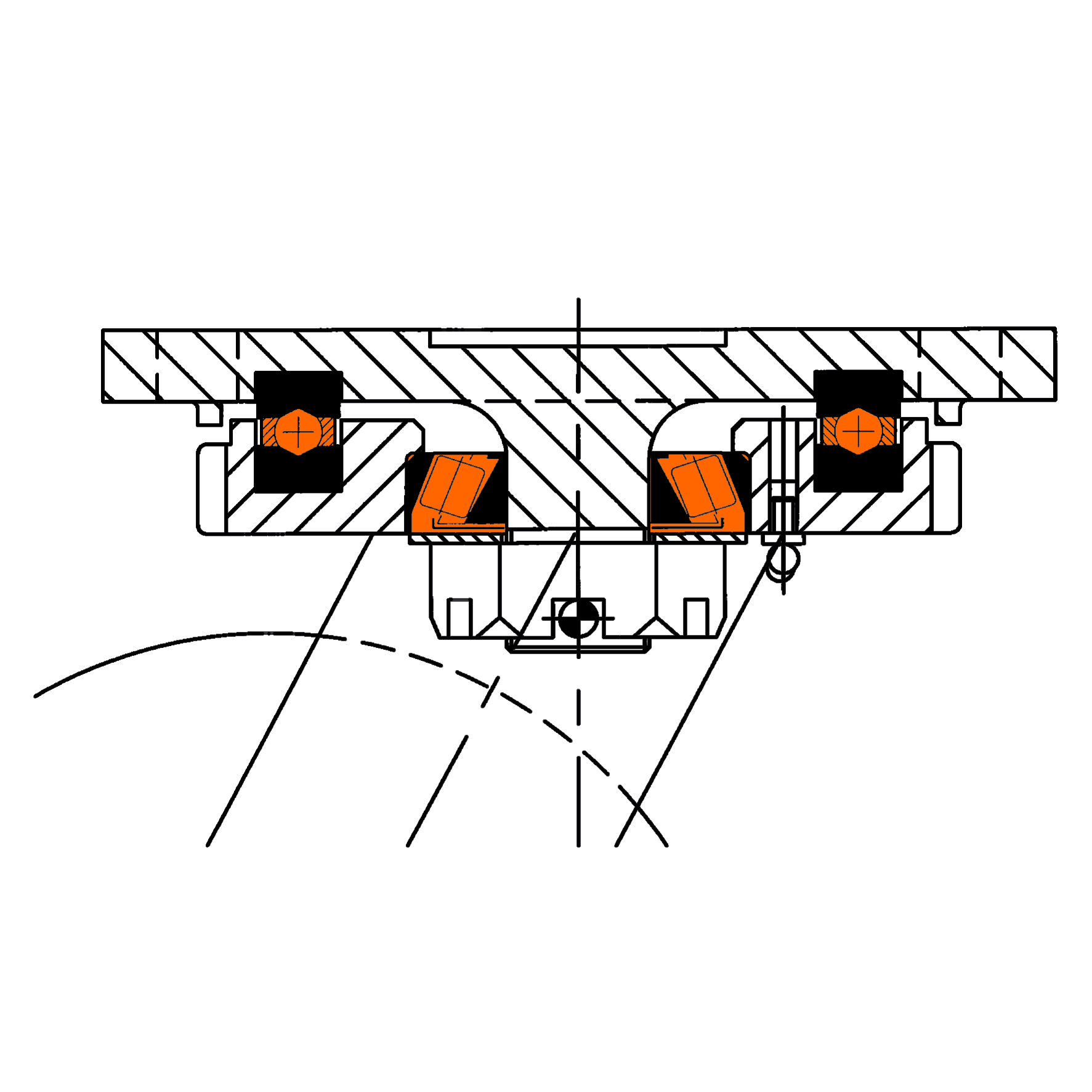

Series R100 …
Wheel -Ø 150, 200, 250, 300, 400 mm
Plate 200 x 160 mm
Load capacity 425 – 5000 kg

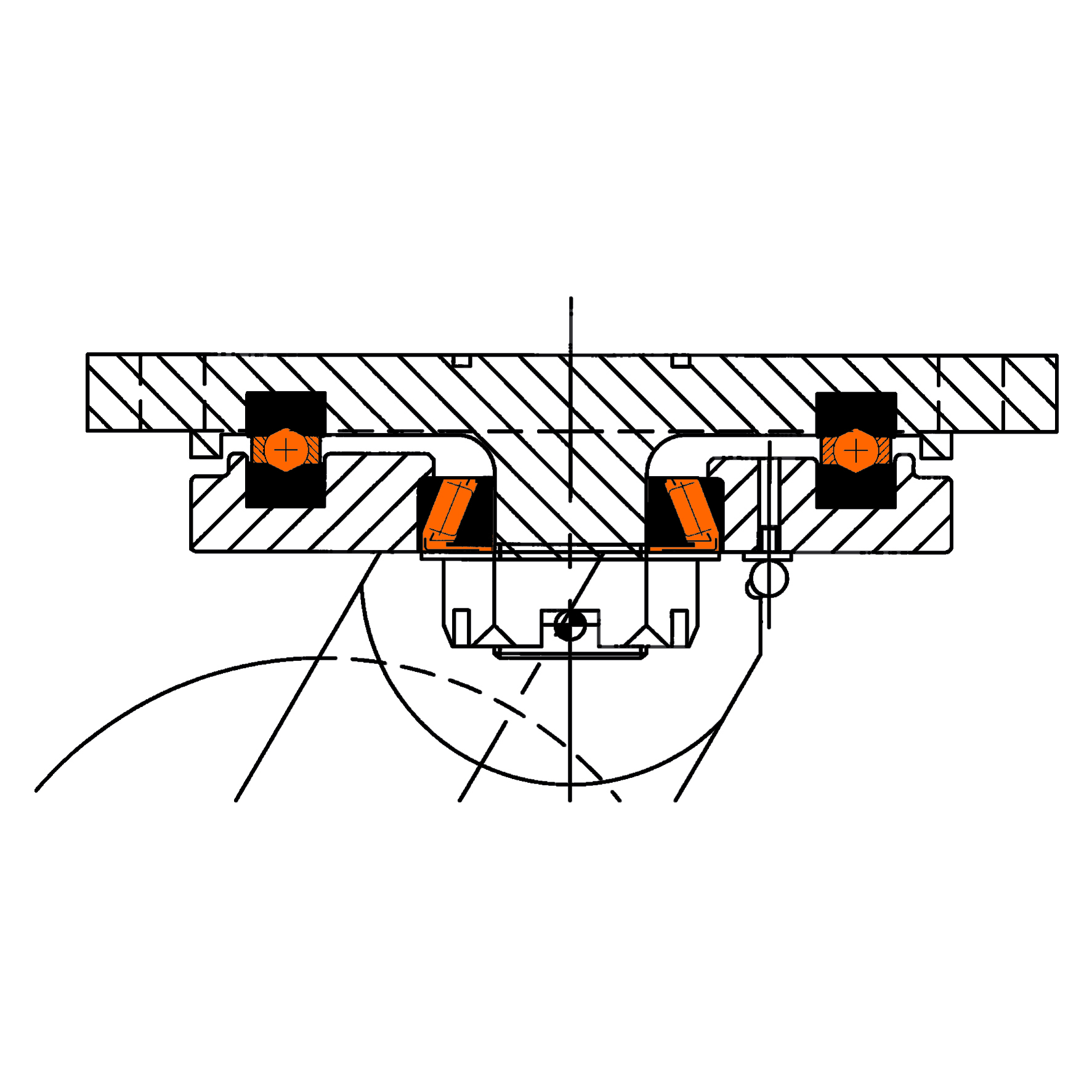

Series R100 …
Wheel -Ø 200, 250, 300, 400 mm
Plate 255 x 200 mm
Load capacity 675 – 7500 kg

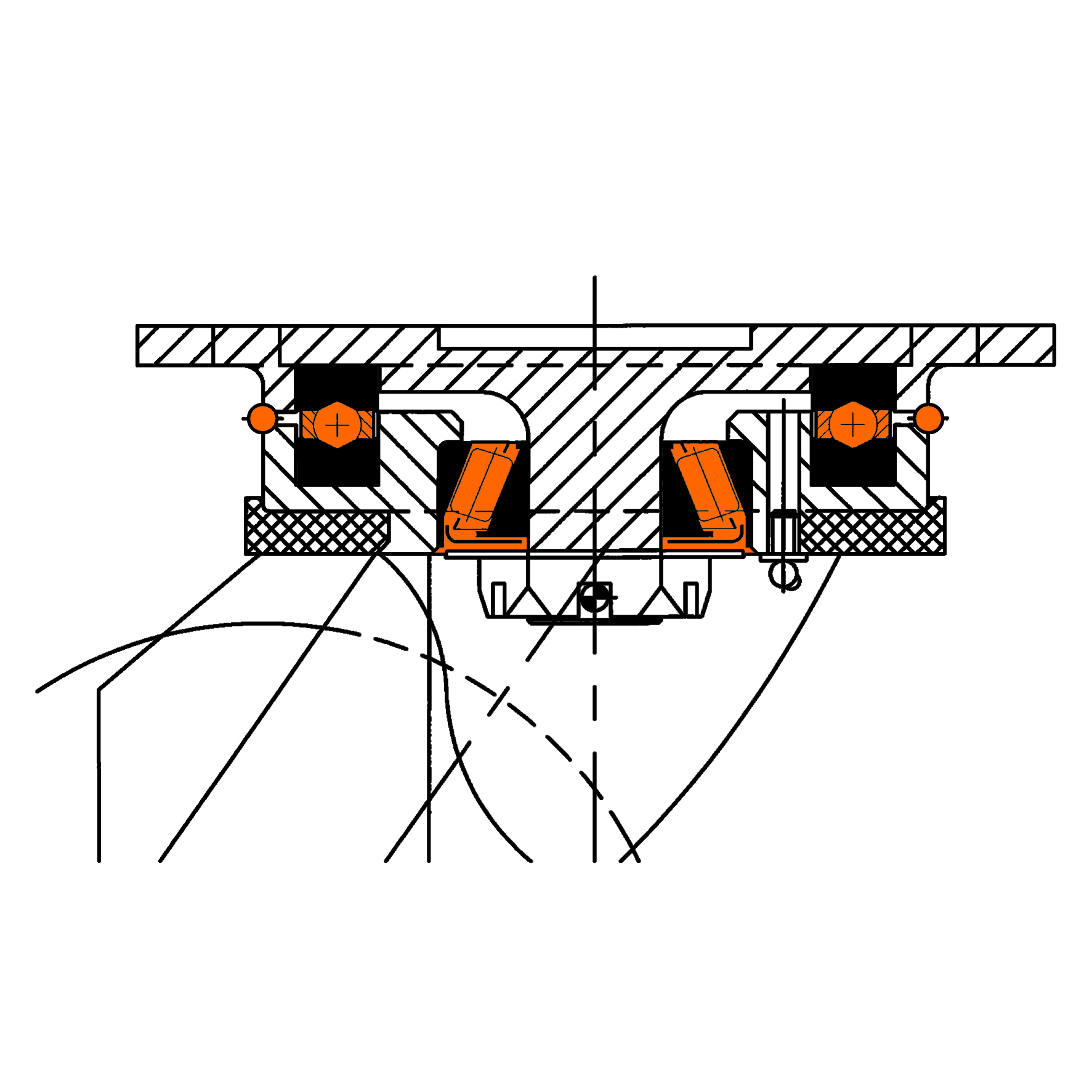

Series S100 …
Wheel -Ø 100, 125, 160 mm
Plate 138 x 110 mm
Load capacity 420 – 1500 kg

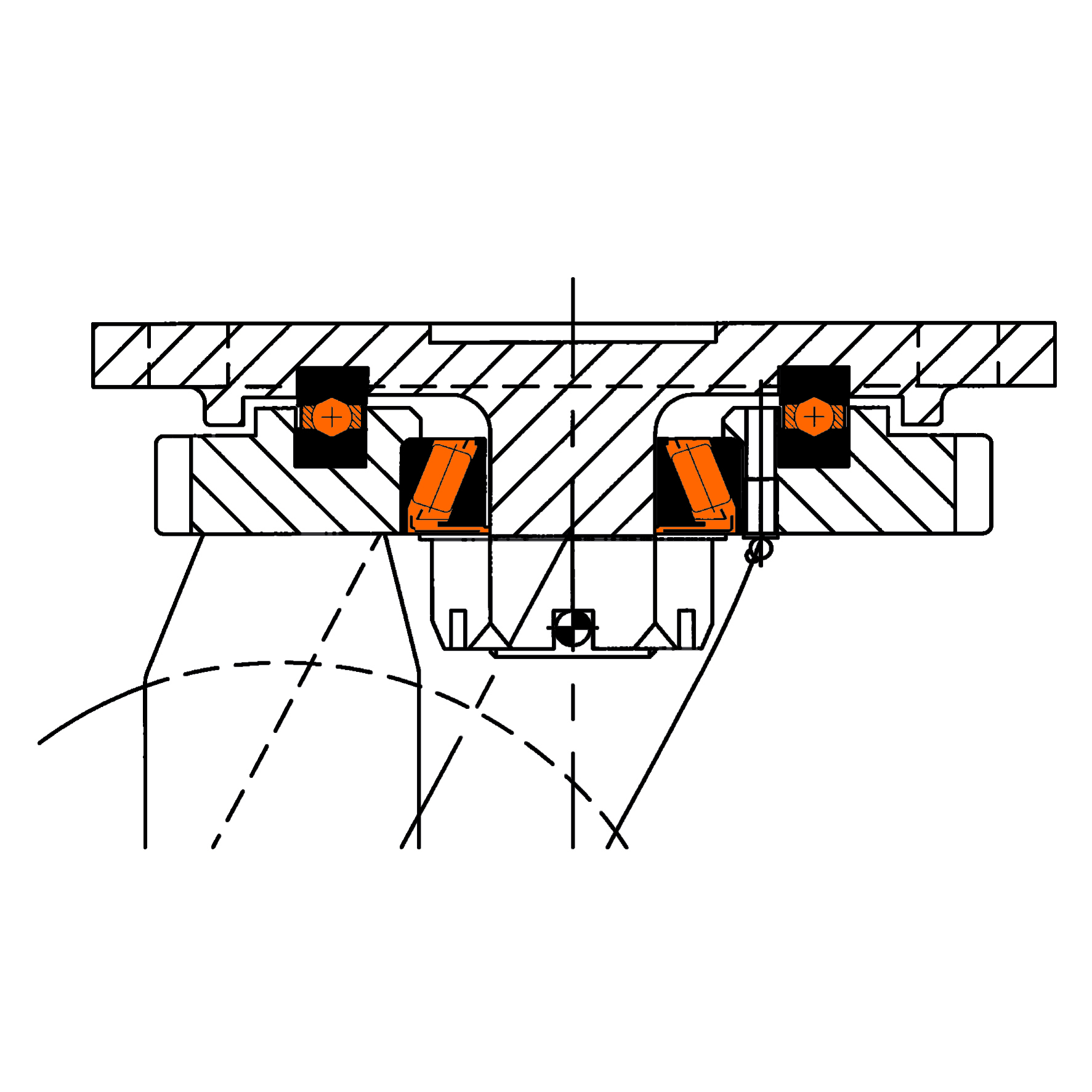

Series S100 …
Wheel -Ø 150, 200, 250, 300 mm
Plate 175 x 140 mm
Load capacity 1000 – 2000 kg

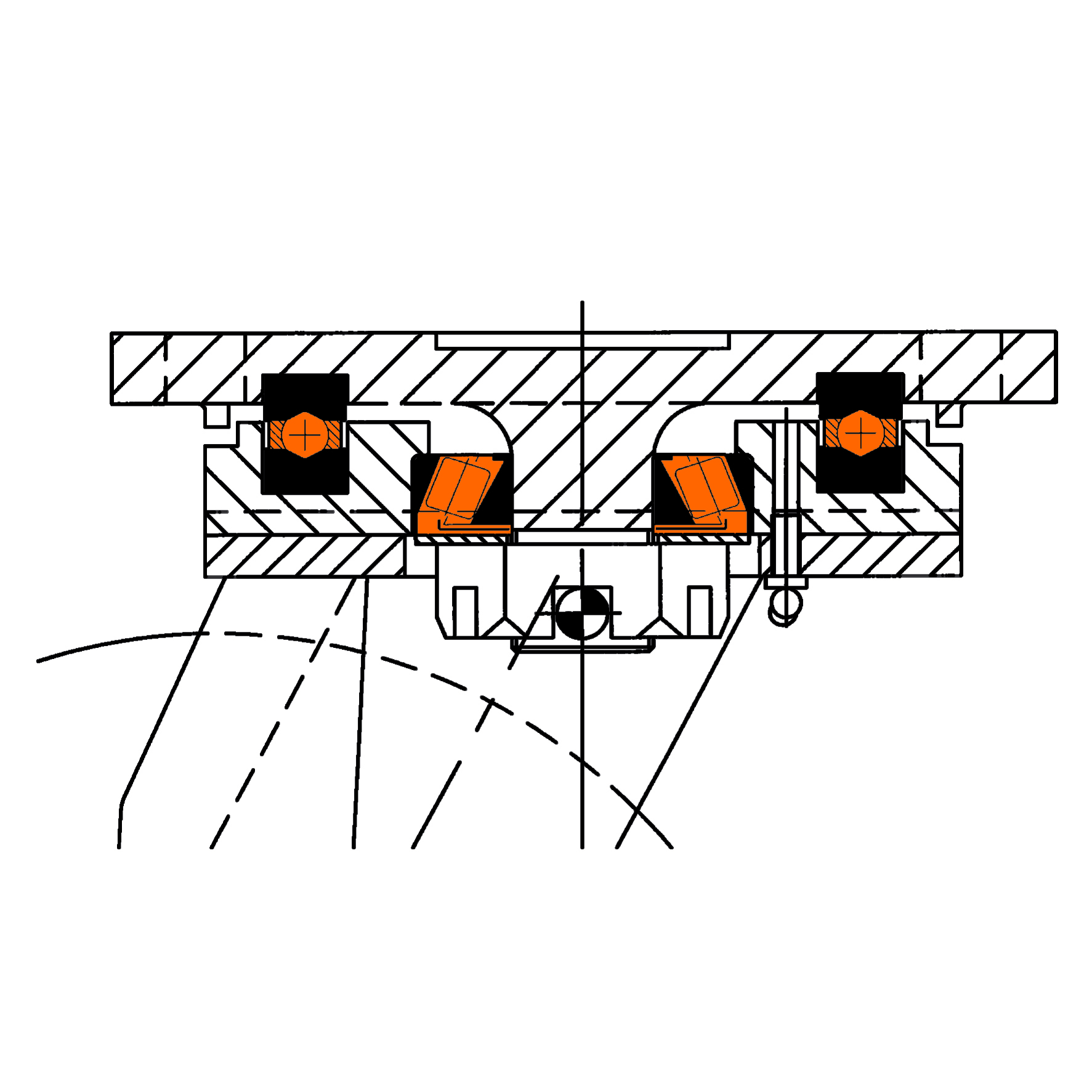

Series S100 …
Wheel -Ø 150, 200, 250, 300, 400 mm
Plate 200 x 160 mm
Load capacity 850 – 5000 kg

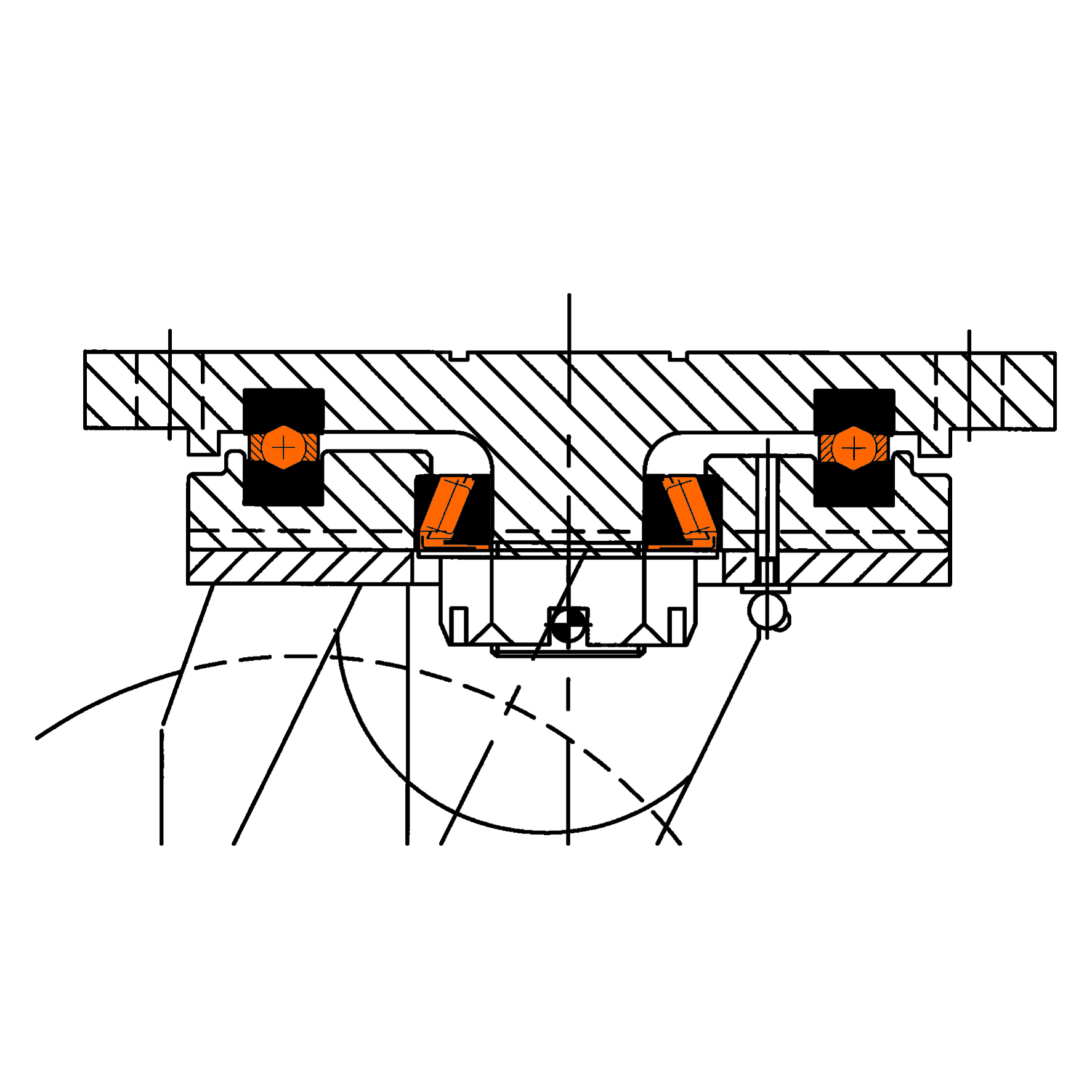

Series S100 …
Wheel -Ø 150, 200, 250, 300, 400 mm
Plate 255 x 200 mm
Load capacity 3000 – 7500 kg

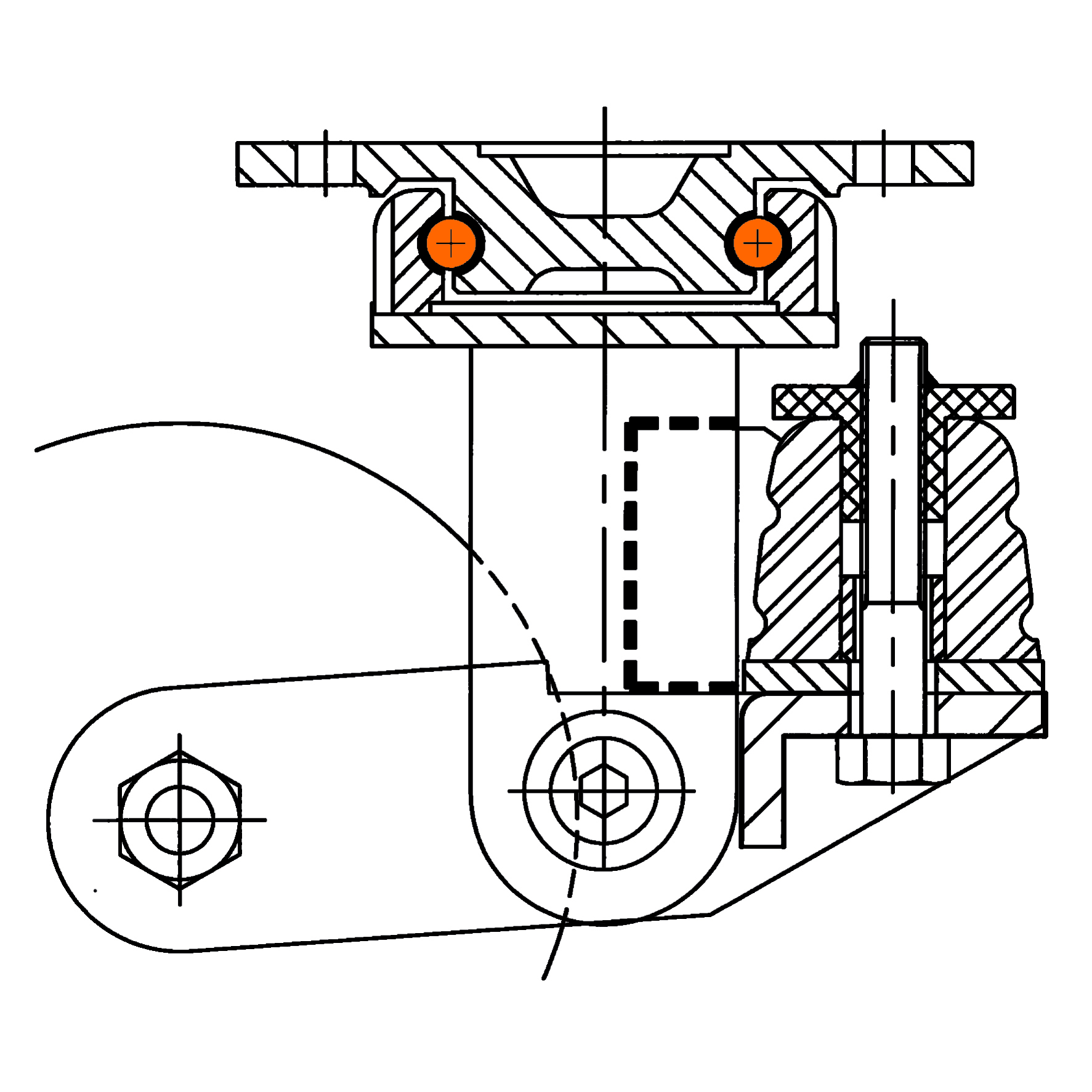

Series T100 …
Wheel -Ø 125, 150, 200 mm
Plate 138 x 110 mm
Load capacity 220 – 600 kg
