The BS-eTec explained simply

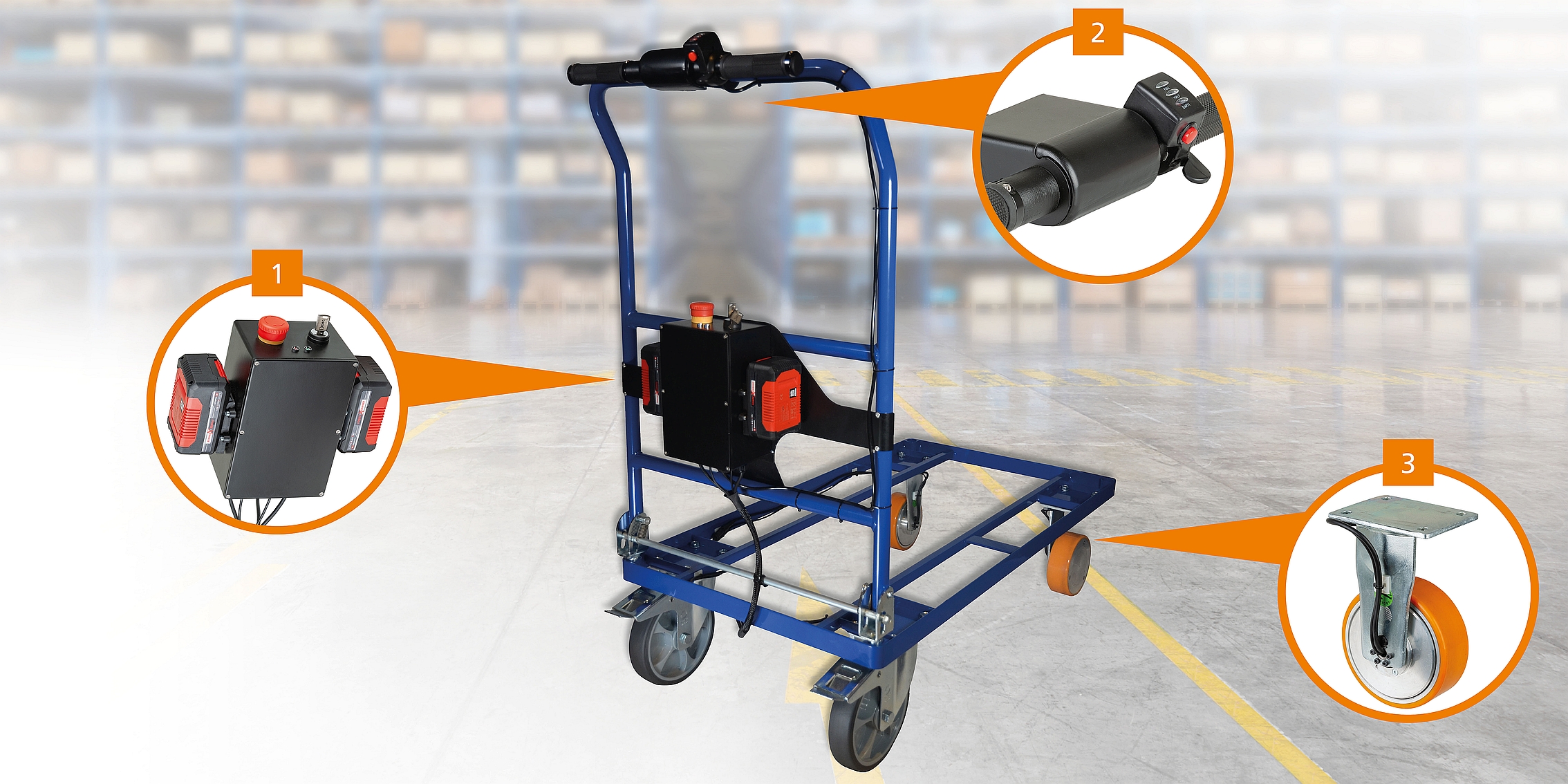

The BS-eTec is made up of 3 components that are compatible with a wide range of transport systems. The system is modularly self-refittable and offers a large number of possibilities for individualisation as desired.
1. Control unit
- Parameterisable settings such as speed, acceleration, differential and short-circuit brake
- Power supply 36V, 24V to 48V possible
- Standard exchangeable battery system and charger
- Brushless wheel hub drive with power of approx. 60W per castor (at 6A up to 144W per castor are possible)
- Control unit can be mounted flexibly, either by means of a support plate or on the existing rear wall
2. Cockpit handle
- with thumb switch, the support can be controlled very precisely forwards as well as backwards.
- Other specific grips also possible
- Cockpit handle can be individually adapted to existing conditions.
3. E-drive
- Wheel diameter of 150 mm, but can also be easily upgraded to 250 mm, system width: 68.5 mm
- almost the same space requirement as classic fixed castors
- Compact external rotor with innovative sensor technology
- single-sided suspension: Payload approx. 500 kg
- standard plate size: 138x110 mm
- standard screw hole distance: 105x75/80 mm
4. Complete trolley systems
Would you like to benefit from the advantages of BS-eTec, but need a complete solution? No problem: our experts have developed a range of complete trolley systems that utilise the BS-eTec. You receive a powerful and efficient solution directly from the manufacturer.
Your advantages:
- Eight different models
- State-of-the-art technology from BS Rollen
- Numerous functions
- Support with customised solutions
Further details can be found on the product page of our BS-eTec trolley systems.

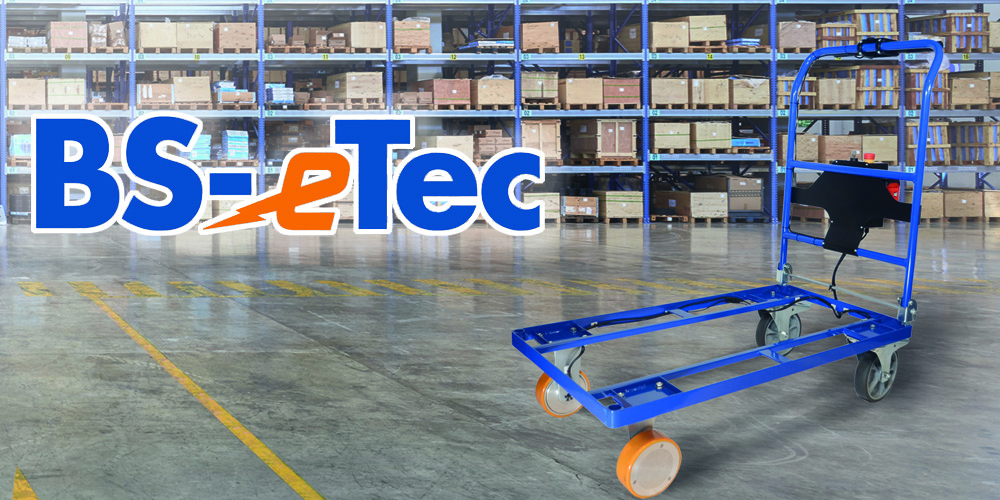

BS-eTec – The switchable electronic starting aid for trolleys
The BS-eTec is the perfect solution for more efficient intralogistics. The electronic starting aid offers easy manoeuvrability during operation despite high payloads. Since more goods can be transported faster, fewer distances have to be covered. This optimises internal processes and the workflow. The system can be retrofitted modularly and is therefore compatible with every customer requirement.
Optimal for intralogistics
Goods have to be moved from A to B all the time. Be it in intralogistics or in other areas. This often requires a great deal of physical effort on the part of the employees and costs time. Trolleys cannot be fully loaded and routes have to be covered several times. This ties up material and manpower. The BS-eTec supports employees with the new electronic starting aid when pushing and pulling transport systems. This creates physical relief, which is immensely important for the employees' ability to work and contributes to the reduction of downtimes. This creates an advantage for employers and employees.
Fully loaded - easily moved
The BS-eTec is driven by two fixed castors that take up almost the same space as classic fixed castors. The electronic assist power can be switched on individually by the employee using a thumb switch or rocker handle when pushing or pulling. This is done extremely precisely and conveniently by an innovative sensor system and enables very smooth acceleration.
Simple individual assembly
The fixed castors can be easily connected to the control unit and the cockpit handle and are thus flexibly adaptable to any type of trolley. Individual configurations are possible entirely according to the customer's wishes and the BS-eTec can be retrofitted modularly by the customer. Changing the bandage is easily done with three screws, which can also be used to variably adjust the wheel diameter up to 250 mm. In a de-energised state, the trolley can be moved without restrictions! Thanks to exchangeable batteries, the BS-eTec is available 24 hours a day.
The BS-eTec offers these advantages
- Faster processes in intralogistics
- Relief for employees
- Better workflow
- Modular retrofittability and enormous compatibility
